My Workshop

My workshop occupies about half of a single garage. It is uninsulated and the only heating comes from an electric radiator which is connected to an Energenie remote controlled socket. I have a Raspberry Pi connected to the house via wifi that serves two functions:

  1. Allows remote control of the Energenie socket so I can turn the heating on-and-off remotely using an app I wrote for my Android phone.
  2. Uses the camera and a modified version of this motion detection script as a security system - all photos are published online so that I'll still have them if someone steals the Raspberry Pi!

The Lathe

My lathe is the Axminster Sieg SC2. It is made by Sieg Industries and is a 7x12 lathe. I bought the lathe in December 2011 (just before Axminster put the prices up by 20% - phew!) and this was my first experience of metalworking. I've made quite a few modifications to the lathe to make it easier to use and more capable.

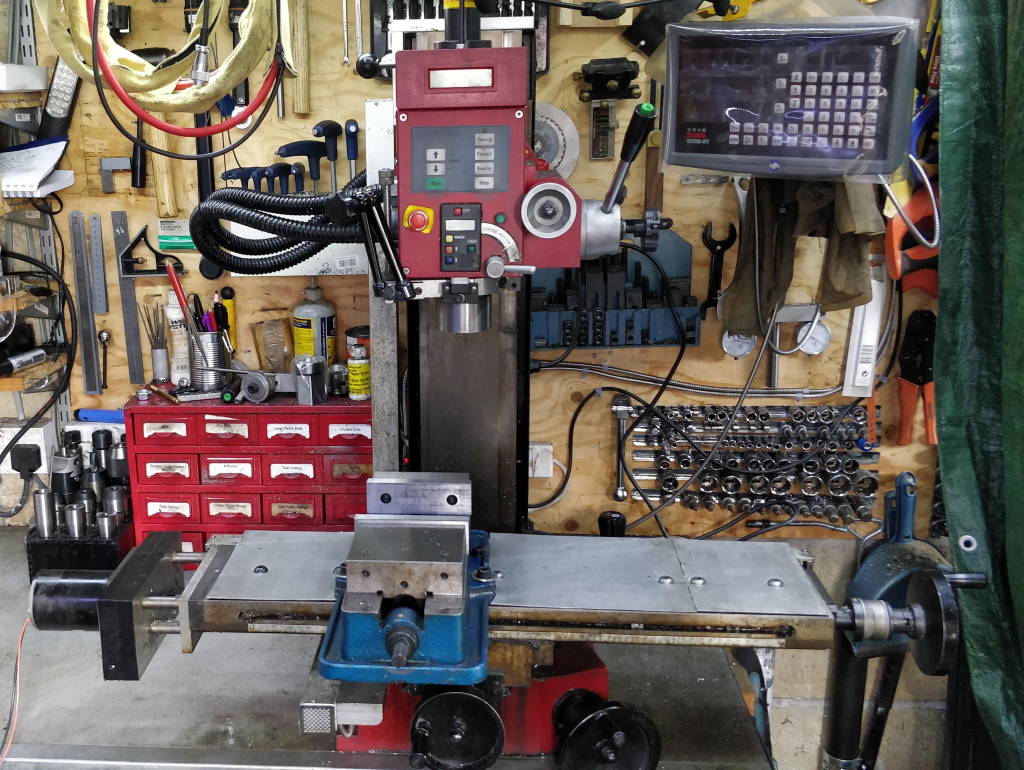

The Milling Machine

I bought my milling machine much more recently (August 2014) than my lathe. I'd found I was reaching the limits of the capabilities of the lathe relatively often, so I waited until I could afford a more powerful milling machine before diving in. The milling machine is a Sieg SX3 with an R8 taper, bought from arceurotrade when they had one of their periodic offers on (lots of free tools thrown in).

There's some information on the modifications I've made to the milling machine on this page.

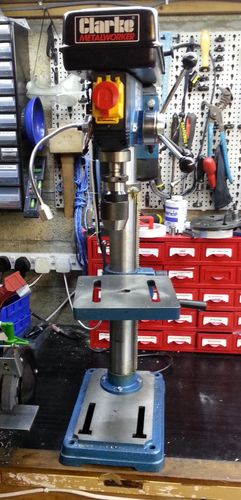

The Drill Press

Fairly soon after buying the lathe, I borrowed a basic drill press from my father. I ended up keeping hold of this for about two years, but eventually I had to return it! To replace it, I bought Machine Mart's CDP10P. The only modifications I've made to this so far are a 1 W LED gooseneck light on the side and a new locking handle for the table.

The Bandsaw

The bandsaw is a Machine Mart 6x4.5" horizontal/vertical bandsaw that I bought second hand on ebay for about £70. In many ways you can see why it was less than a third of the normal retail price, but it does what I need. I've added a simple end-stop to the bandsaw and modified the mechanism for tightening the drive belt, but that's about all I've done with it apart from cut!

The Bench Grinder

The bench grinder is a 6" bench grinder from Machine Mart that I bought in a sale. Modifications to the grinder are documented here.

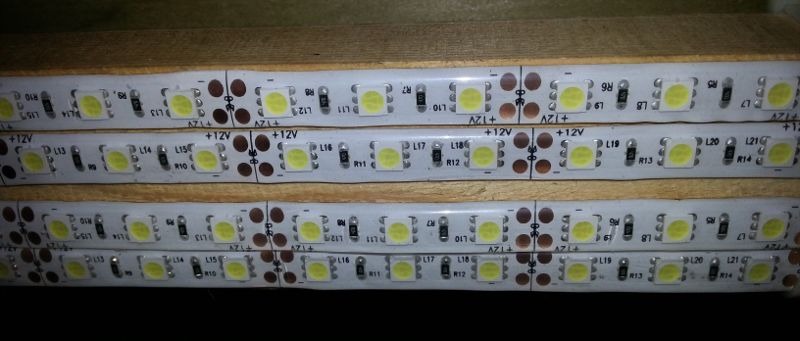

Workshop Lighting


Light in the workshop is, obviously, essential. Getting enough light to be able to see everything you need to see clearly everywhere you're working isn't easy, but I've found that a brilliant (pun intended) and cost-effective solution is to use strips of white LEDs. The strips I bought are 5 metres long and each strip has 300 "5050" (this refers to the size of them: 5 mm by 5 mm) cool white LEDs. I have one of these strips running back and forth above each of the benches in my workshop and I rarely need any other lighting as they're so bright. The only places I have added lighting are a few 1 W LED gooseneck lights that I've mounted on some aluminium blocks with some 20 mm × 10 mm NdFeB magnets in the back. These give some focused lighting for detail work on the rare occasions when the long LED strips aren't enough.

The LED strips can be bought on ebay for about £15 including power supply (probably cheaper if you shop around). Search ebay for "LED 5050 5m cool white" and you'll get lots of options.
