Portable Workbench Build Process
Return to main project pagePage 19 of 67
Posted 14th March 2021

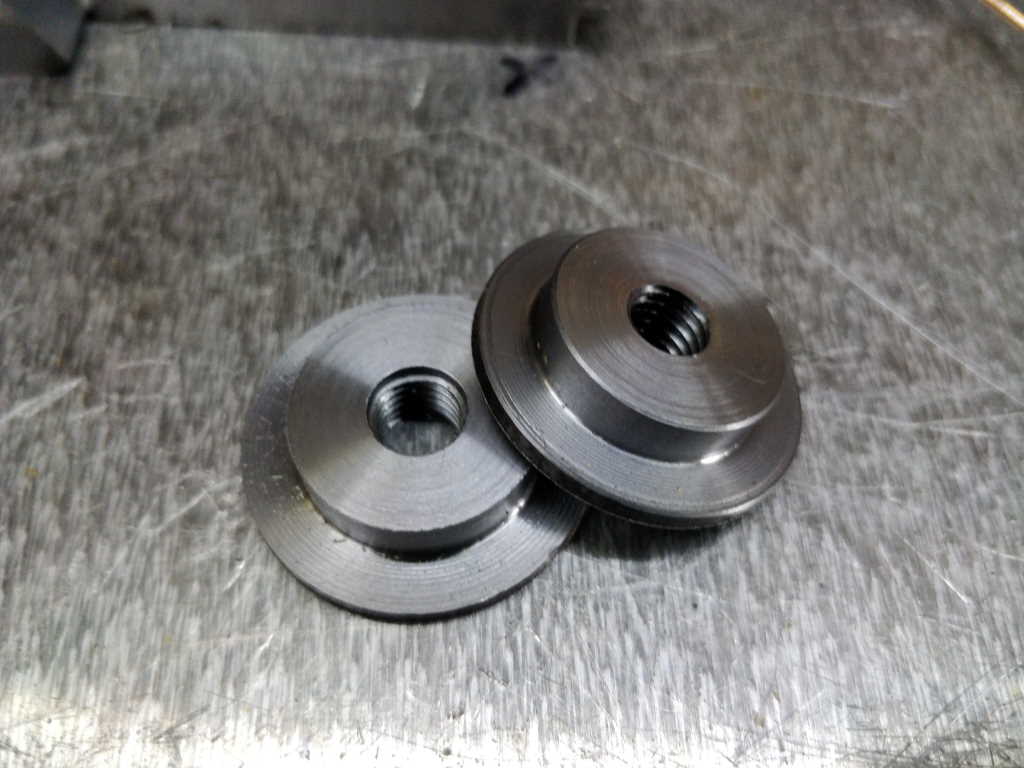

Most of today was spent welding (and waiting for recently welded parts to cool down!) but I also did a bit of turning. I started by making a couple of simple bushes out of a bit of rusty steel I had in the scrap bin:

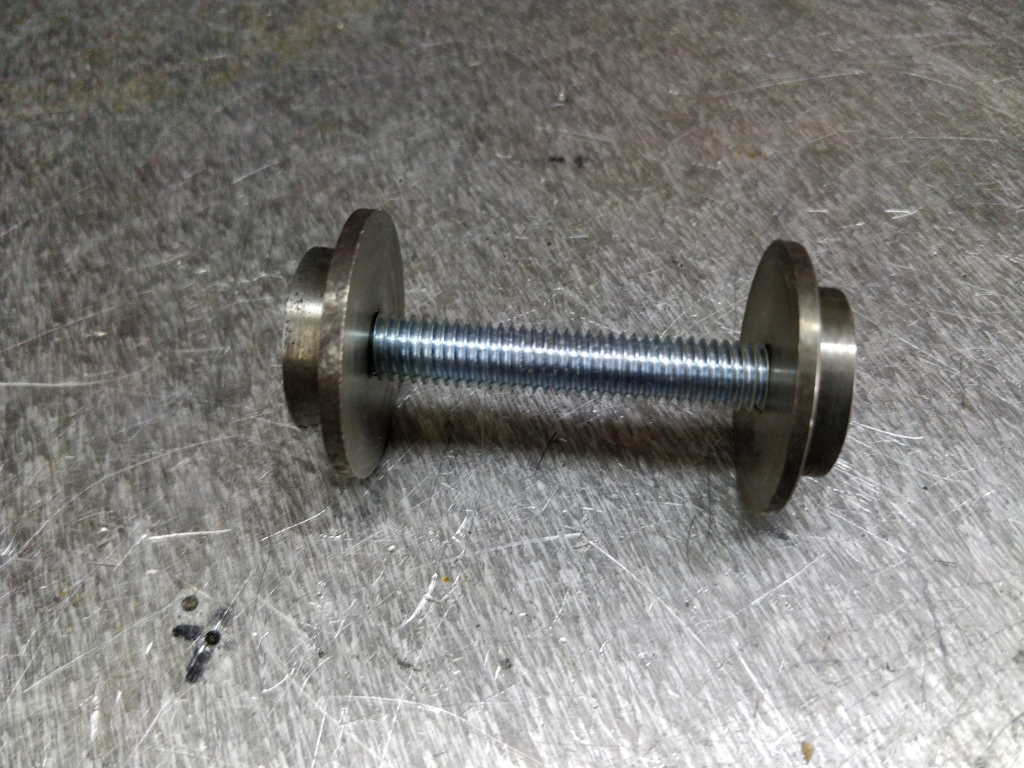

These go together with a bit of M8 threaded rod to make some train wheels!

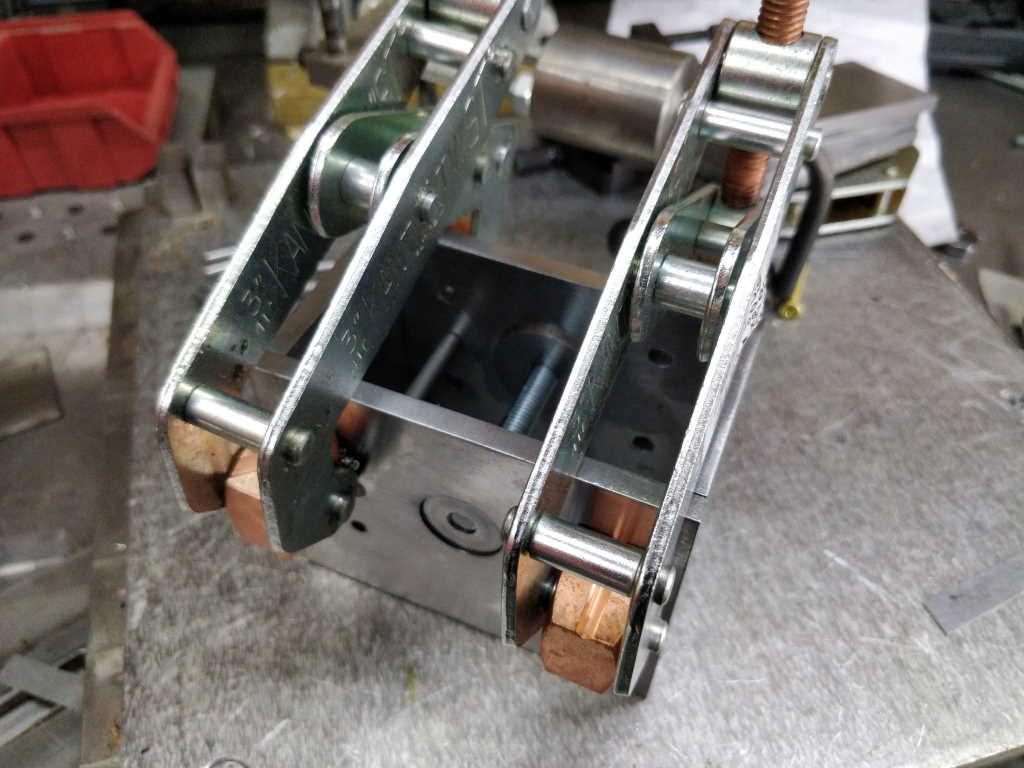

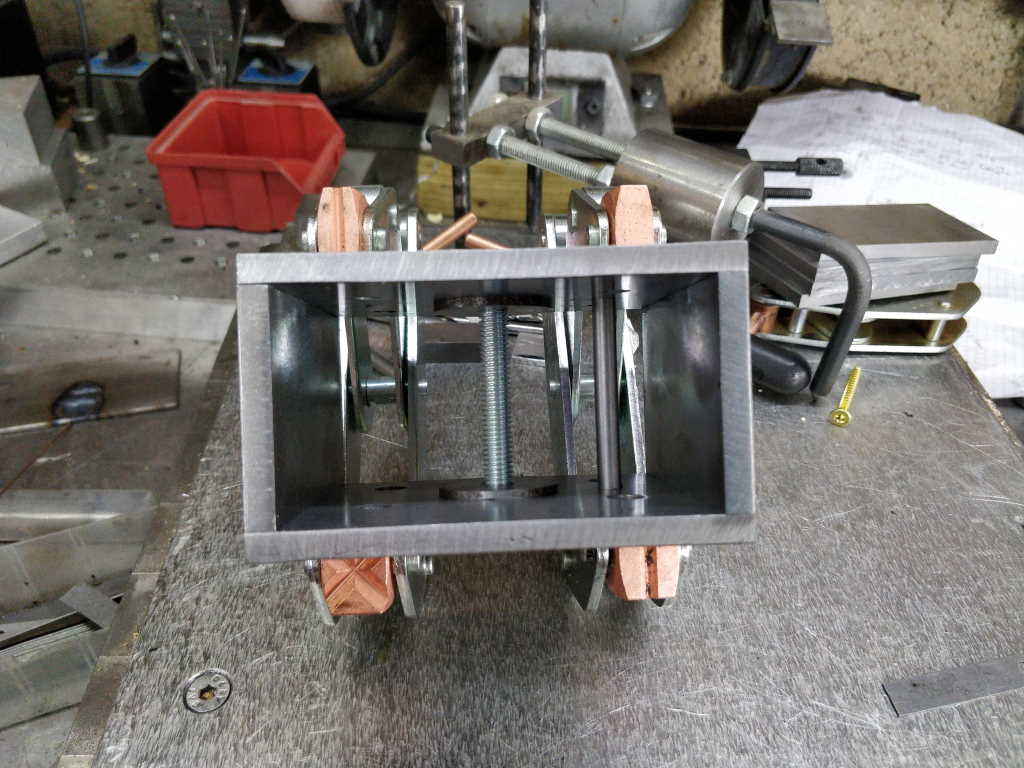

They then go in between the two halves of a vice mechanism body and hold the two big holes in alignment. The jam bar (a bit of 6 mm steel bar) is also inserted to make sure those two holes stay lined up too.

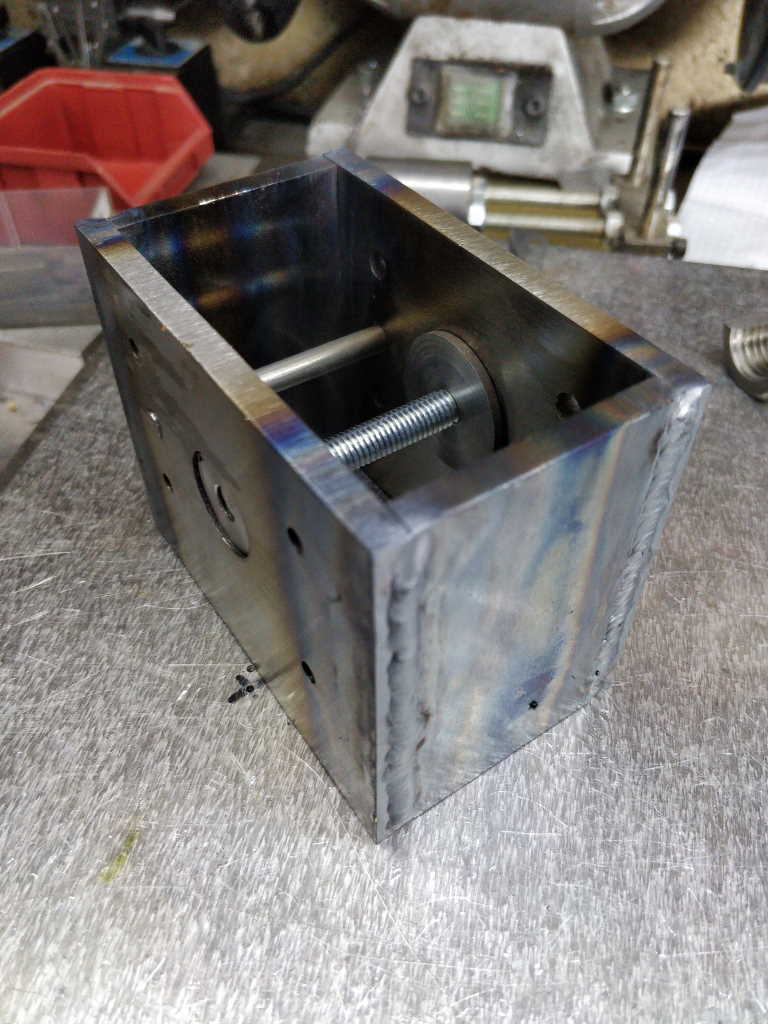

First body welded:

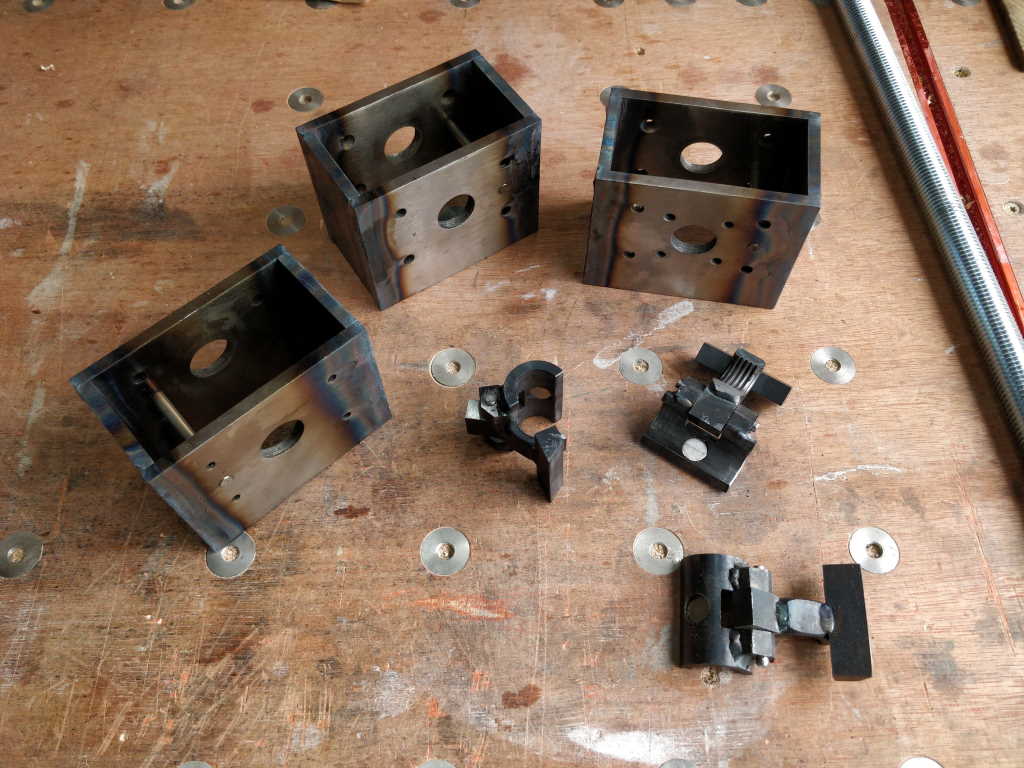

All the parts for all the vice mechanisms are now complete and tested:
The jam bars and hinge bars are still loose at the moment; I need to decide whether to bother cutting them to length (or just leave them overhanging a bit) and then I'll fix them in with Loctite 603 probably.

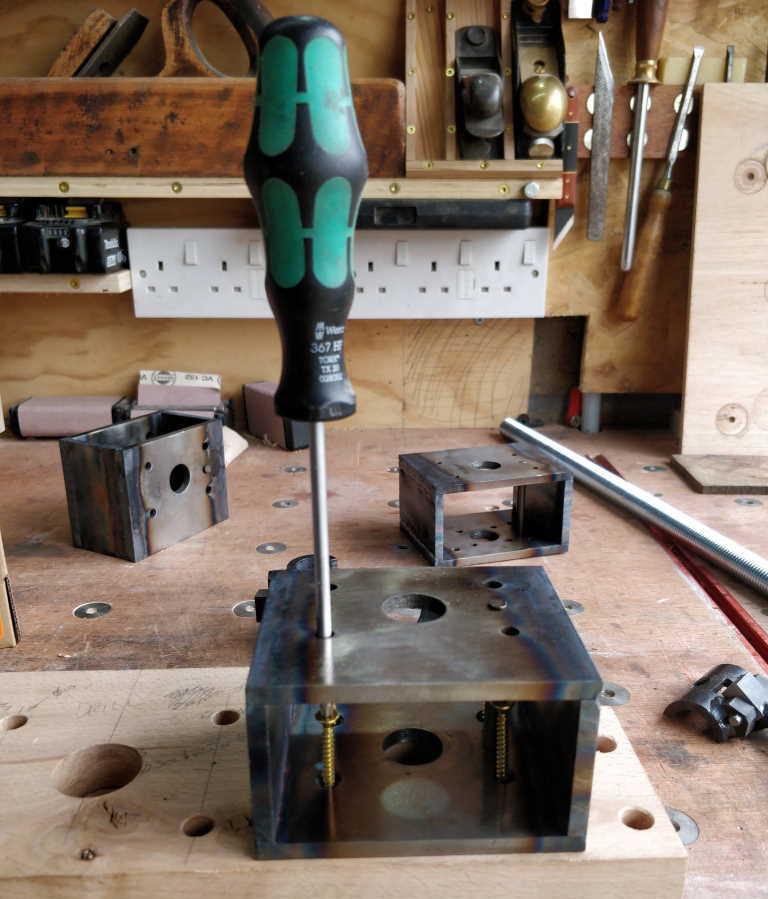

Here you can see the reason I added extra holes in the outer plate. With hindsight it probably would have been better to make them big enough for a long T20 bit for my impact driver, but I'm sure I'll cope doing it by hand!
Finally, I started the first bit from the very large amount of turning I have to do. I started with the slotted bushes that go in the moving jaw of the dual-screw vice. These are turned as simple cylinders and then I'll stick them on the mill and make the central hole into a slot as well as adding a hole for a pin to keep them aligned in the jaw.

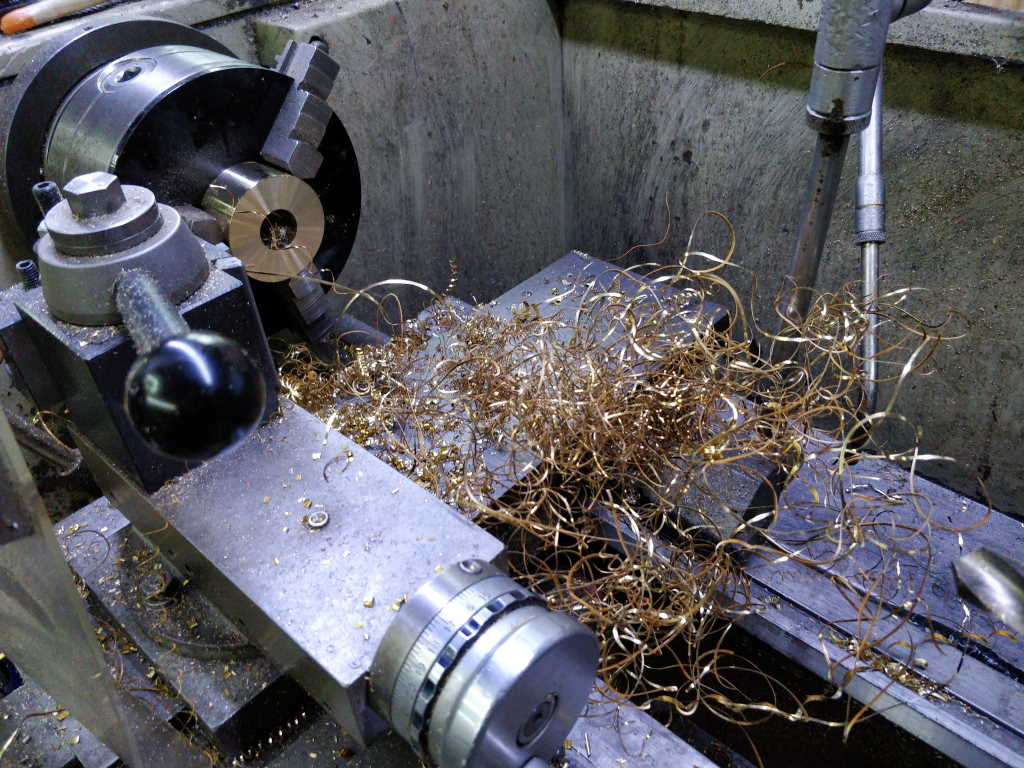

I haven't done much in the way of CAD based design of metal things; I generally just make it up as I go along. These (60 mm diameter) bits looked a lot bigger in the flesh than they did on the screen! I also discovered the disadvantage of getting lots of free brass: this stuff is horrible to turn: it produces lots of stringy bits of swarf, more like aluminium than brass. I guess it might be aluminium bronze (which I've got a little of, also for free) as that turns in a similar way to this; alternatively it might just be a non-free-cutting grade of brass.
Either way I'm hoping that the other big bits of brass (which look a bit different) that I've got are a nicer grade that produces little chips more easily. The 31.25 mm stuff that I got out of the same skip as the 63.5 mm stuff was a nice free-cutting grade. I'm also hoping that this isn't too difficult to mill.
