Portable Workbench Build Process

8/3/2021

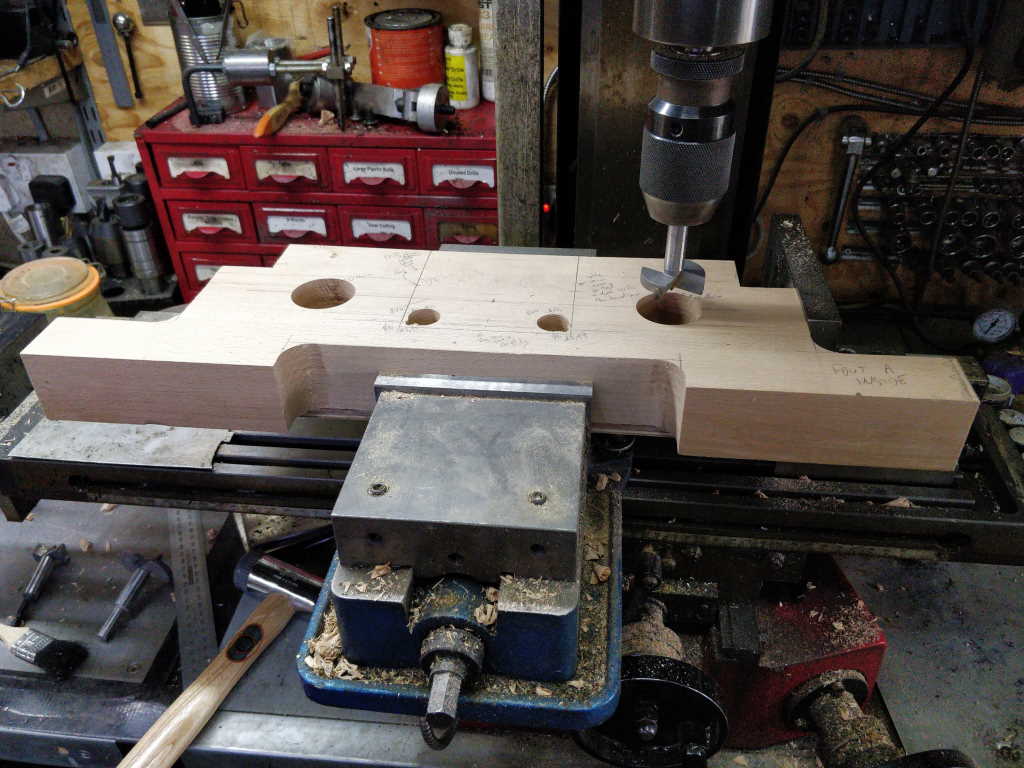

I made a little bit more progress tonight. I started by drilling out the holes in the foot and fixed jaw for the conventional vice end of the workbench. The fixed jaw was simple: all drilled from one side; three holes drilled through with two opened to a bigger diameter to depth 10 mm. The foot involved a couple of through holes and some other holes for jigsaw access:

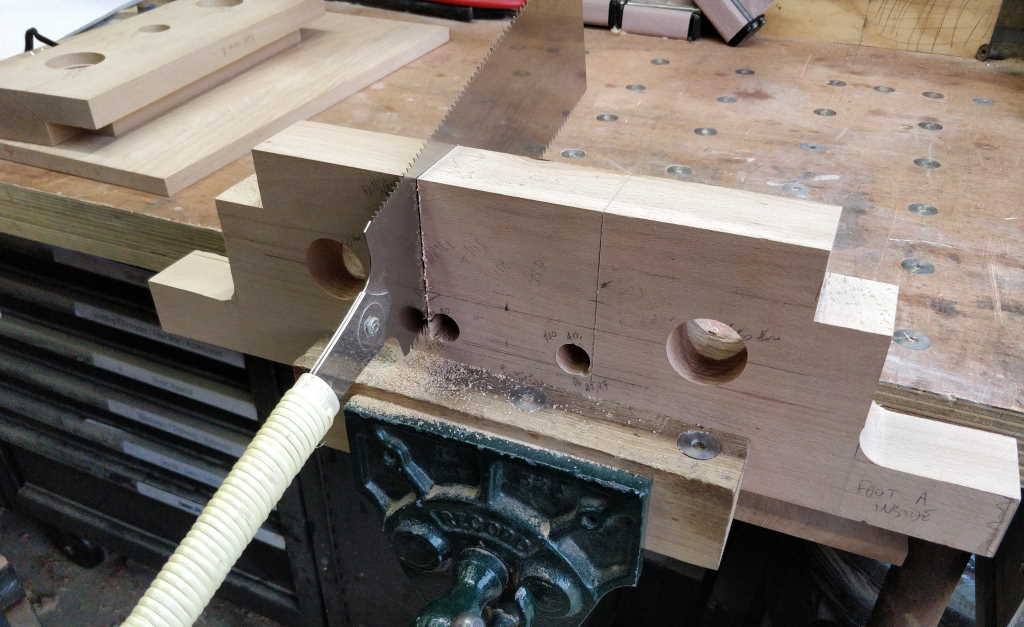

After that, I clamped the foot in the bench vice and sawed down to the holes:

I was a bit more confident on the second cut and went closer to the knife line:

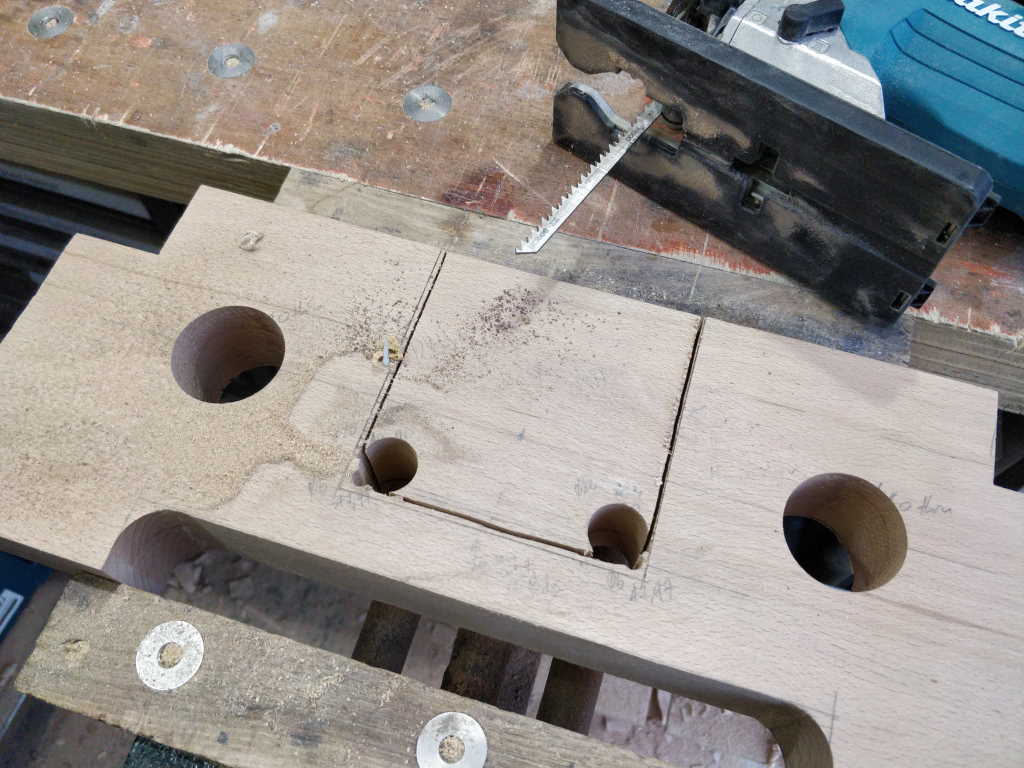

I then used the jigsaw to separate the two pieces:

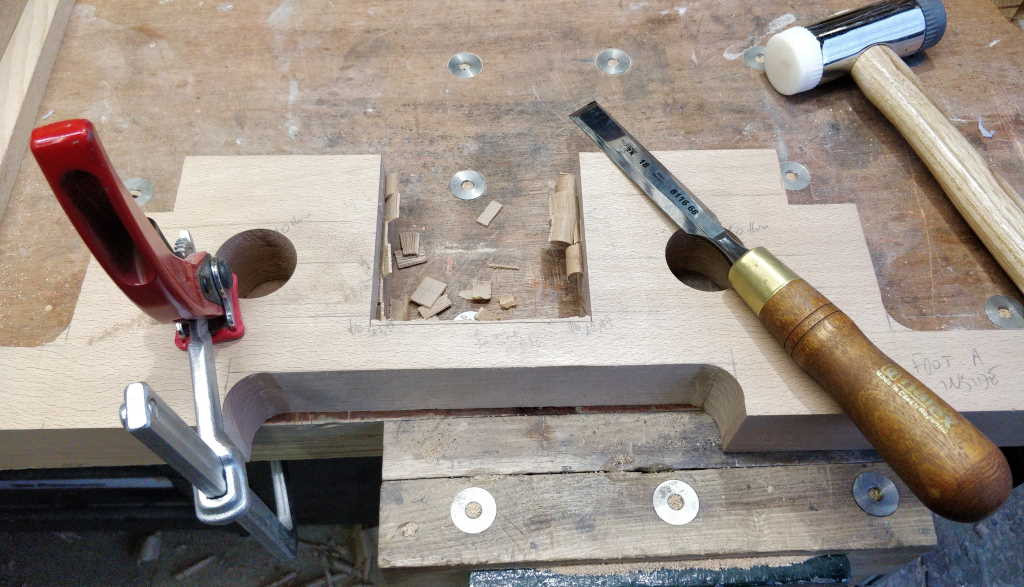

Then (after sharpening the chisels I used yesterday), I tidied it up:

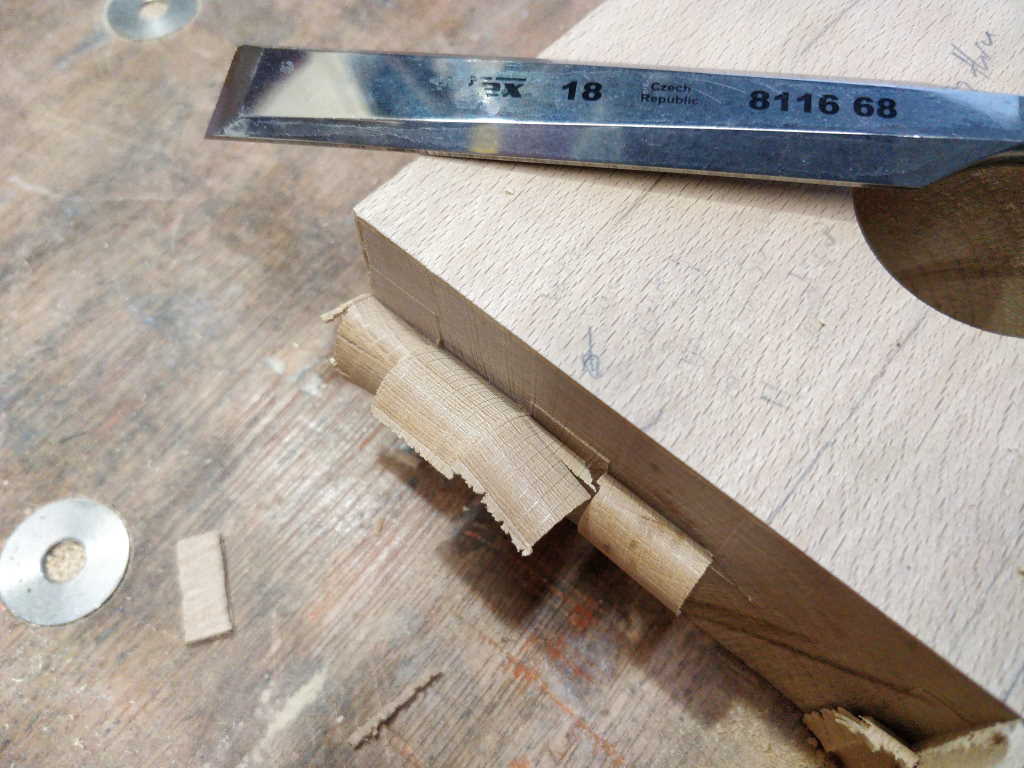

Am I the only one who finds end-grain chisel shavings like this extremely satisfying?

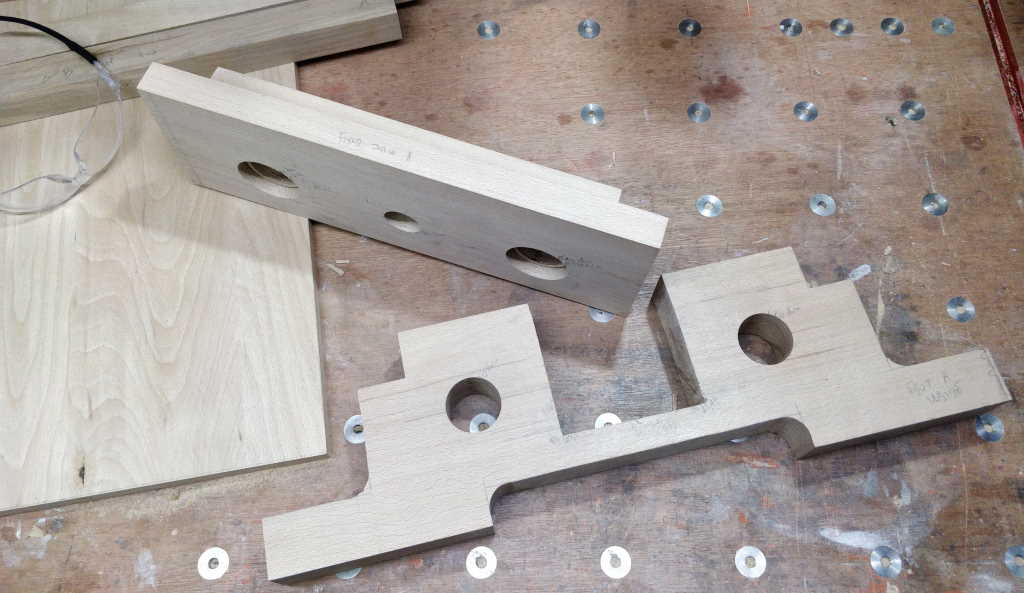

Then a bit of final tidying up of the slot with a saw rasp again (although no-one will ever see these faces) and I called it a day:
