Bevel Up or Down Smoothing Plane Build Process
Return to main project pagePage 14 of 25
Posted 12th April 2026

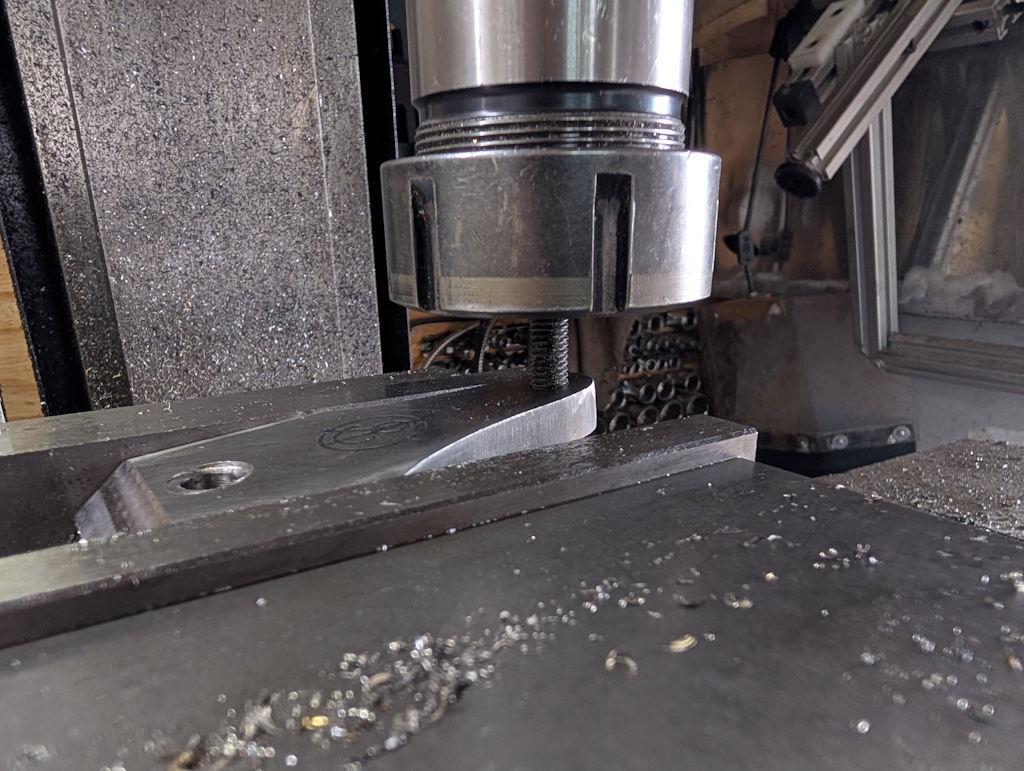

This morning I've been making the hardware to go with the lever cap, but first I decided I wanted a larger thread for the clamping screw. I put an M8 screw in the mill's collet chuck and screwed the lever cap onto it and that allowed me to put it in the vice in such a way that the hole was aligned with the spindle:

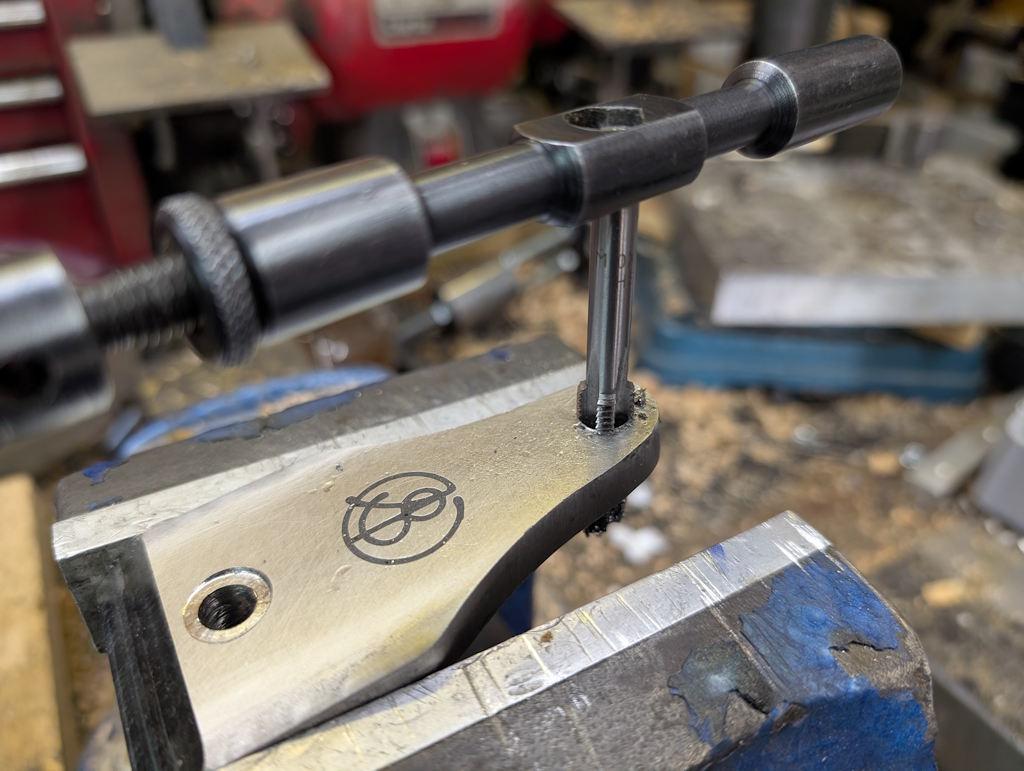

After drilling it out 8.8 mm, I took it over to the bench vice and tapped M10 × 1.25.
I probably would have gone with M12 × 1.25 if I had the tap, but my collection "only" included M12 × 1, M12 × 1.5 and M12 × 1.75! I'm sure either of the finer pitch ones would have been okay, but the 1.25 mm pitch just seemed about right for this application.

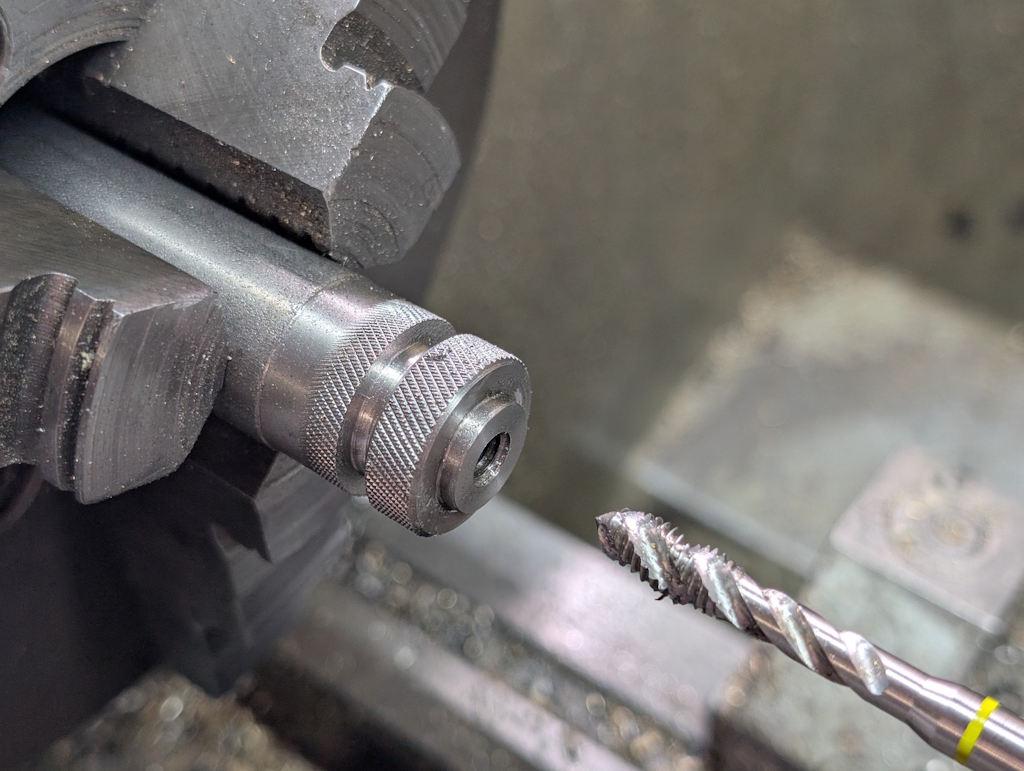

Next up was a very simple knurled nut for the pivot screw:
That can be quite small as it is never properly tightened, just snugged lightly up against the lever cap before tightening the clamping screw.

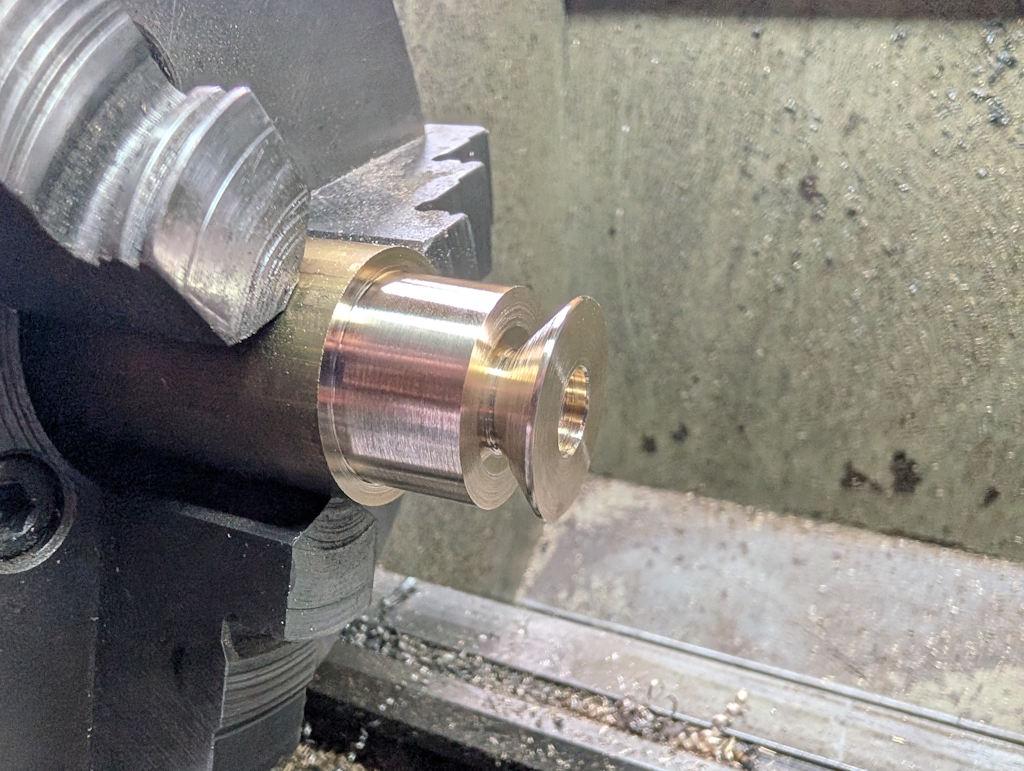

I wanted a clamping arrangement a bit like the one on my Veritas low-angle smoothing plane. That has a large foot that presses down on the blade (there's no cap iron on the Veritas), spreading the force. I started by making the foot out of a bit of 32 mm brass, turning it down to 26 mm and then putting a 45° taper on it. It got drilled through 6 mm and counterbored 12 mm:

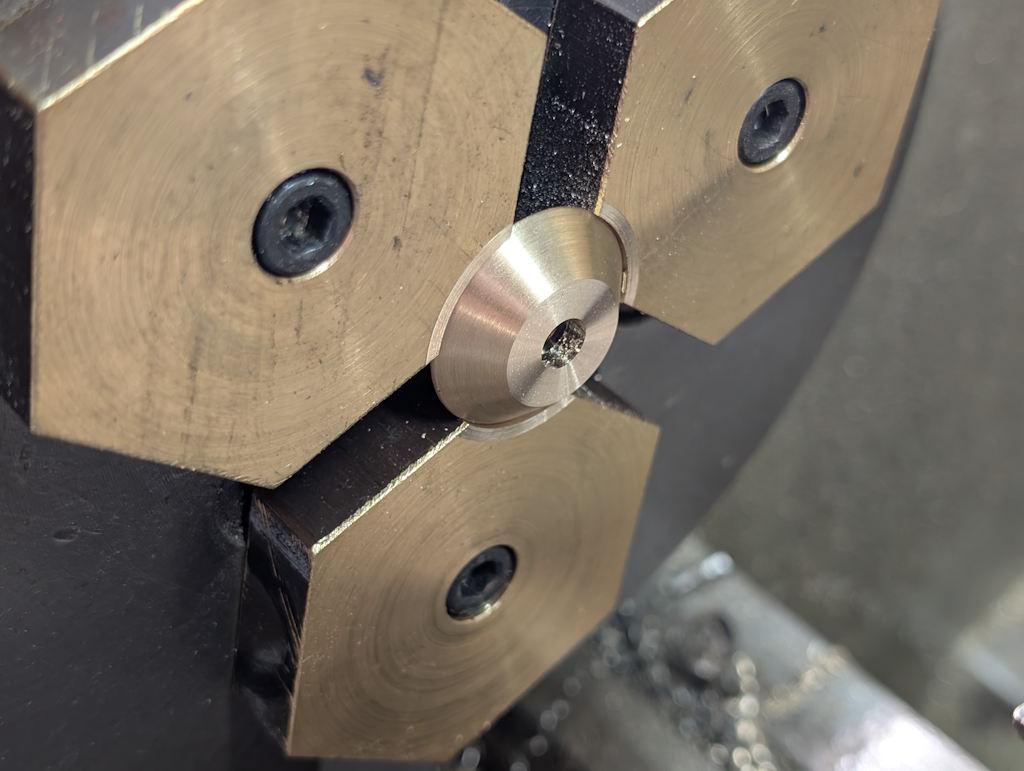

After parting off, it went in the home-made soft jaws for facing to length:

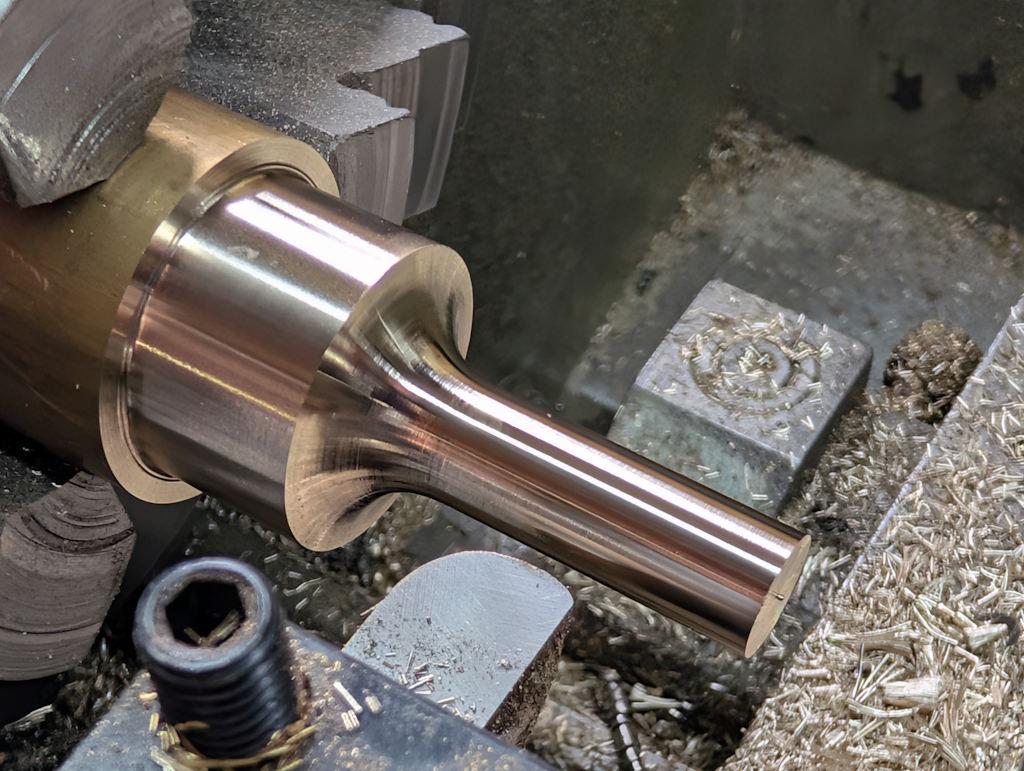

The clamping screw itself was made out of the same bar of brass. I used a tool with a big radius on it to reduce the diameter:
It didn't need a radius like that, I just did it because I felt like it.

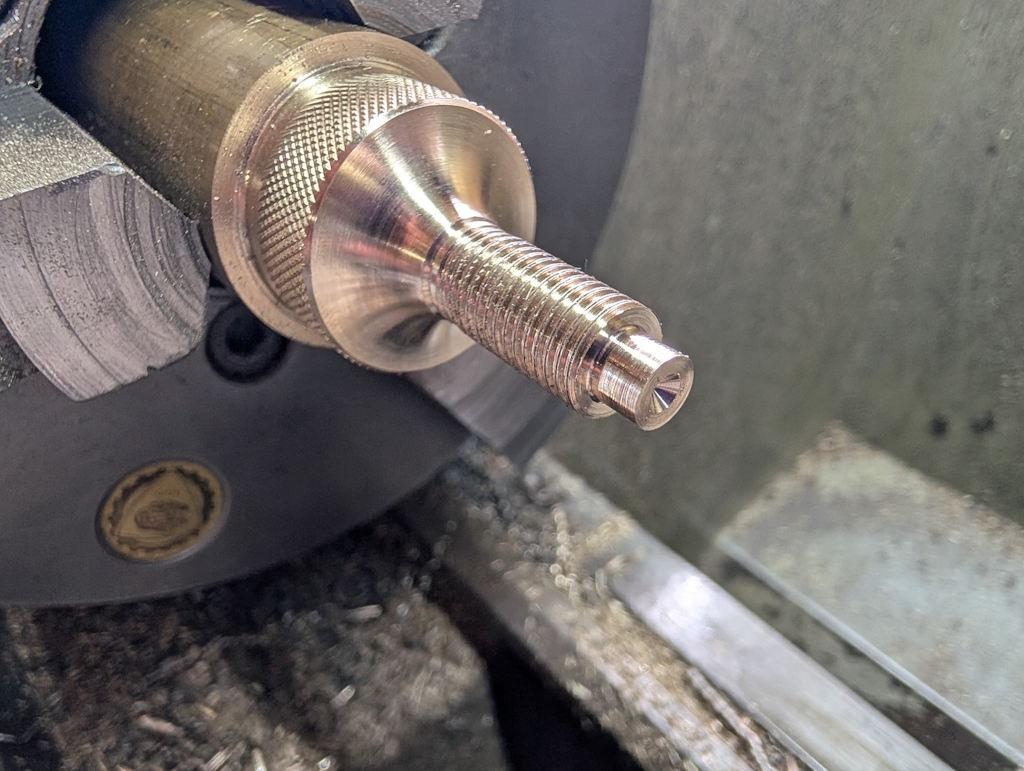

The bigger section got knurled, the smaller section threaded M10 × 1.25 and the tip reduced and lightly spot drilled:

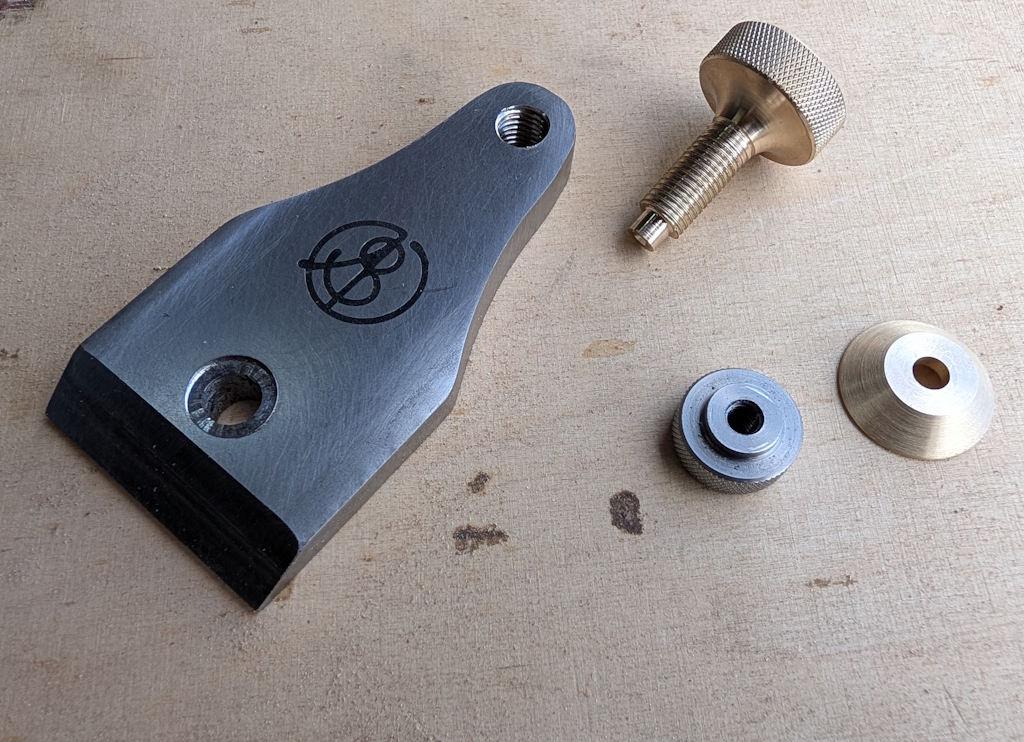

All of the above gave me this kit of parts:

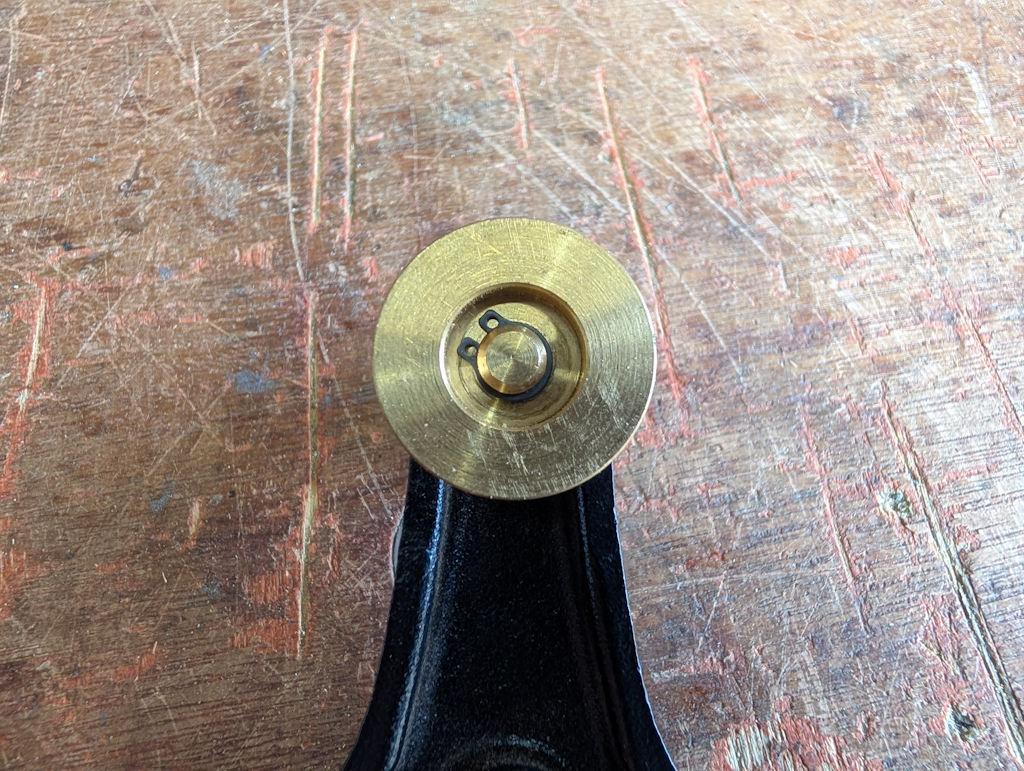

On the Veritas lever cap, the foot is held in place with a circlip:

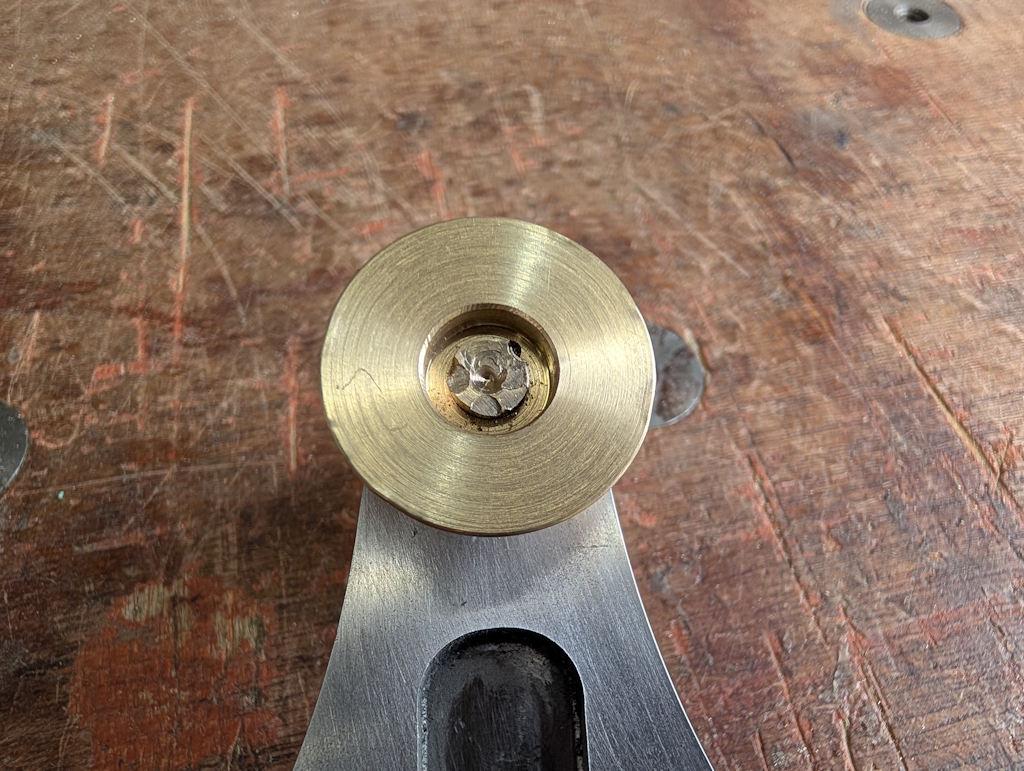

That is a very sensible option for a mass-produced part, but I'm only making one and I didn't have any circlips small enough. Instead, I assembled it all and used a punch to mangle the brass tip a bit so it couldn't go back through the hole:

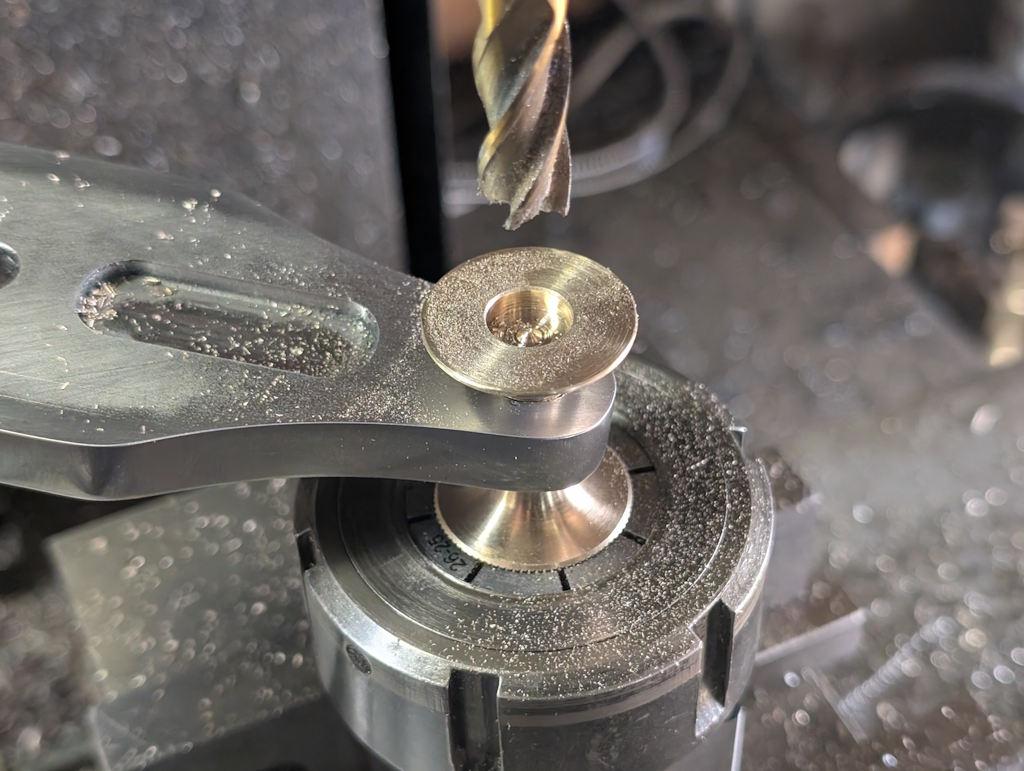

Unfortunately, I was a bit too aggressive with the mangling and it ended up a bit tighter than I would have liked: it would rotate but not very easily. There was a bit of excess screw thread so I decided to just have another go. To that end, I put the assembly in a collet block in the mill vice and milled out the end of the screw:

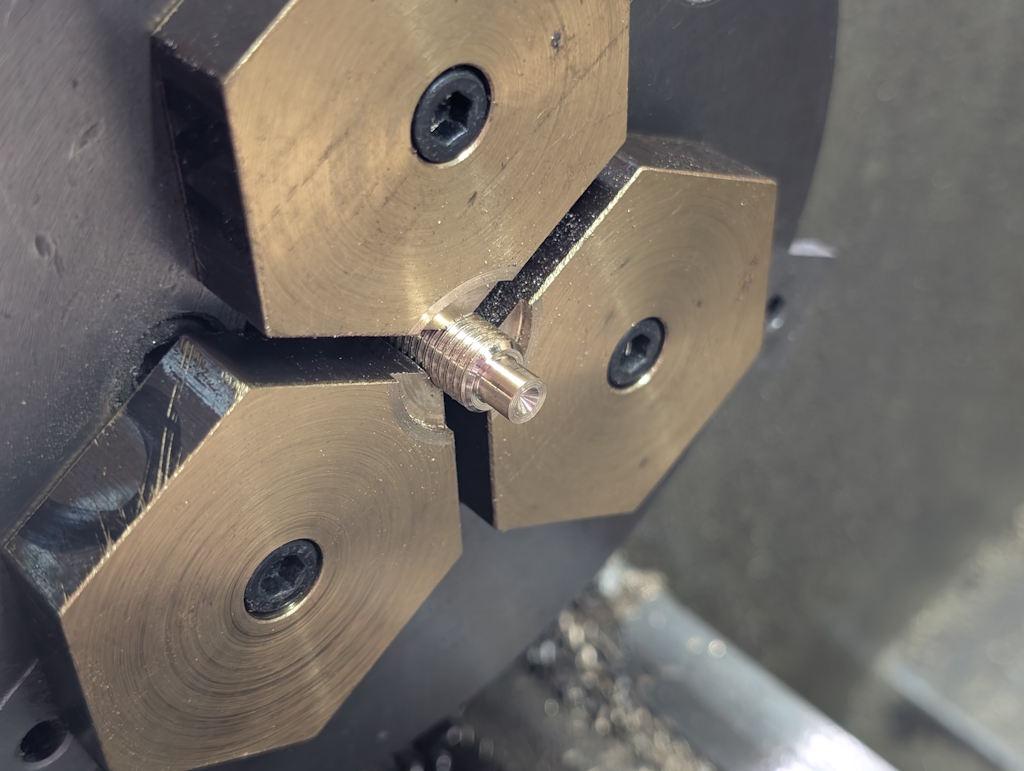

It could then go in the soft jaws on the lathe for a new tip:

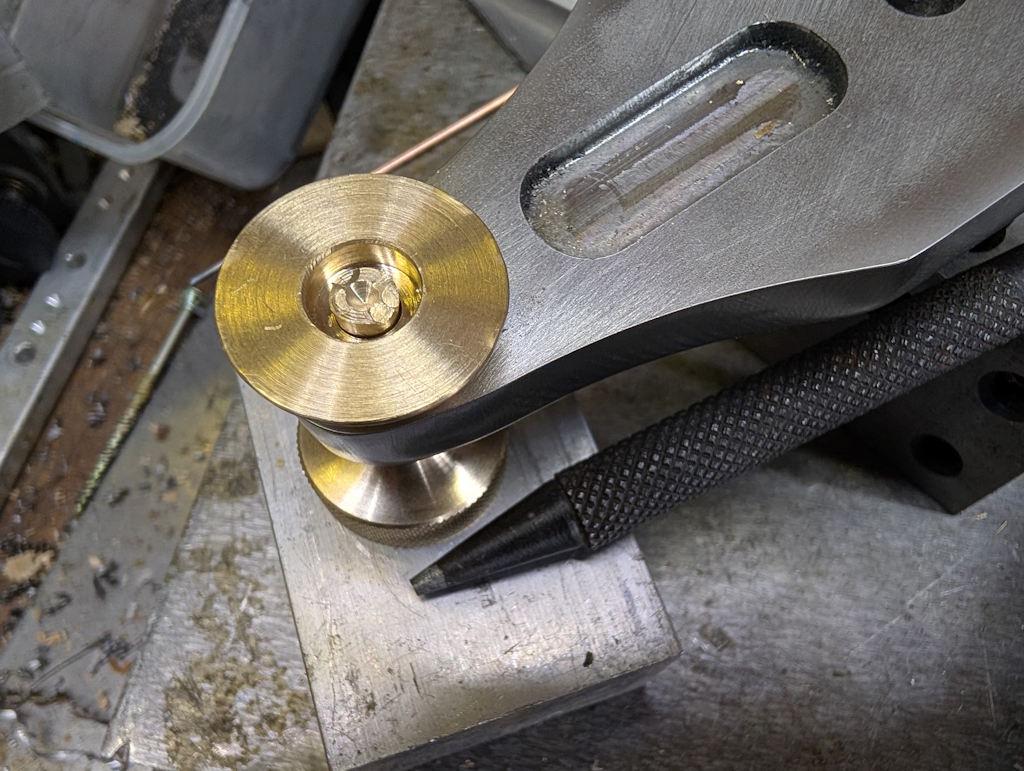

This time I was a bit more cautious and hit it just enough that it wouldn't come back out:

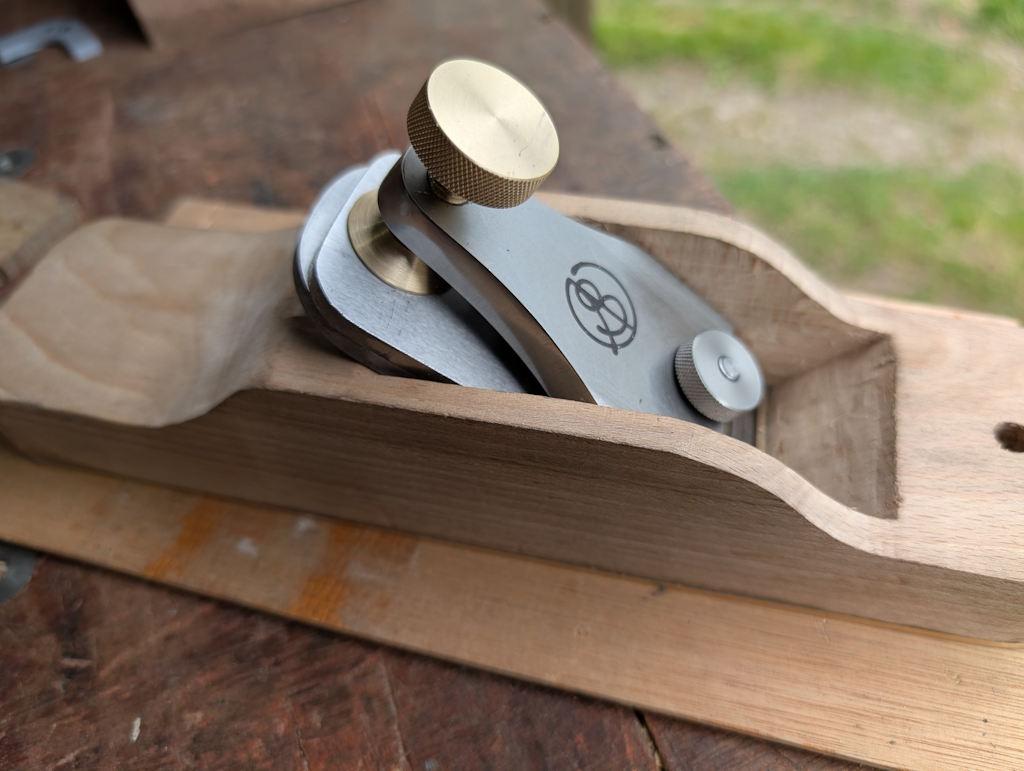

With that done (and the custom dual-thread threaded bar I made a few posts ago shortened slightly), I could do a trial assembly:
I'm really pleased with how that came out: it assembles easily and holds rigidly.

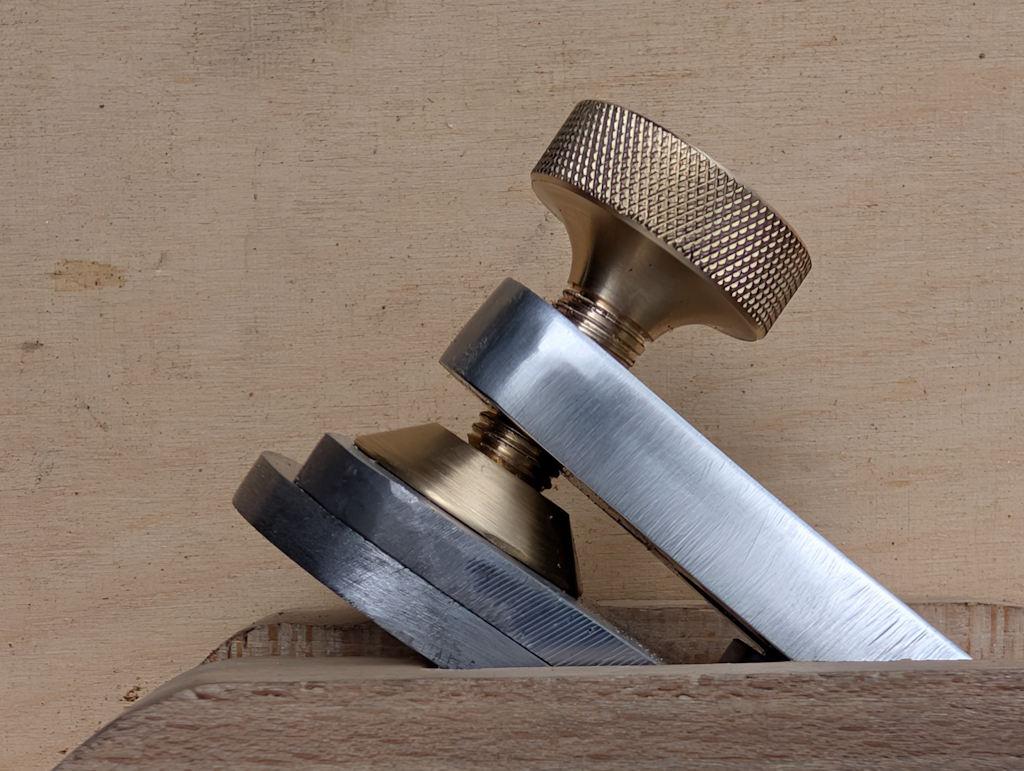

I mentioned early on that I was drilling the holes through the lever cap at an angle to account for its tilt. I think this photo shows what I was aiming for quite well:
