Bevel Up or Down Smoothing Plane Build Process
Return to main project pagePage 17 of 25
Posted 17th April 2026
With the metalwork all done, it was time to get back to the difficult stuff: woodwork.

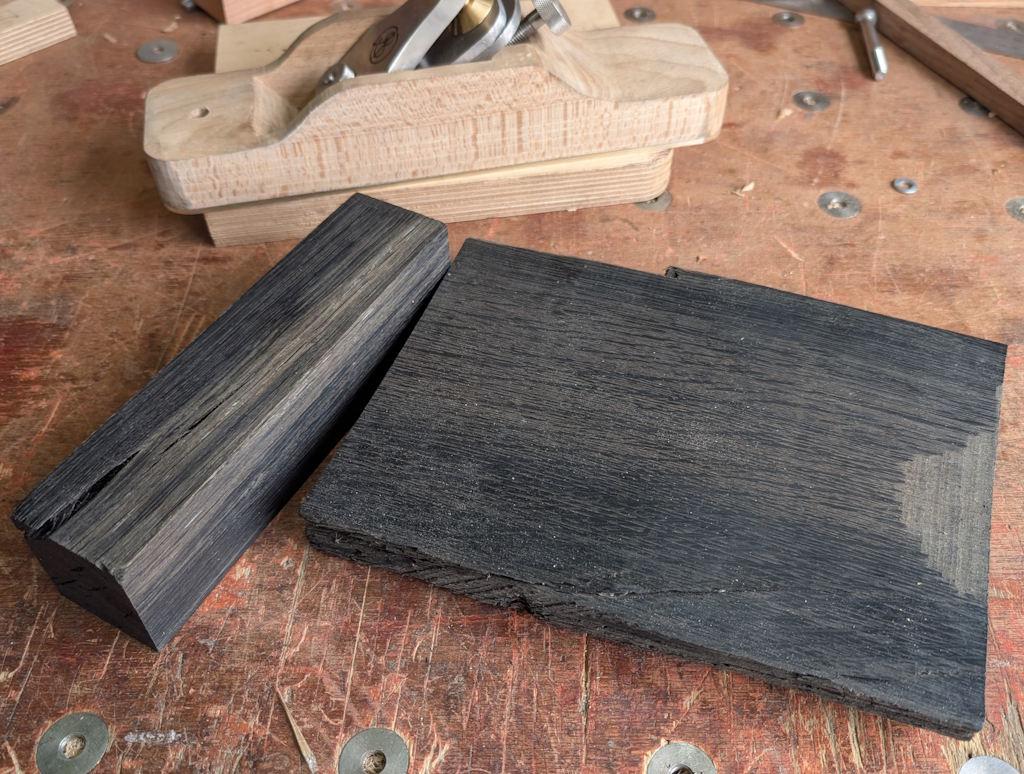

A couple of weeks ago, I received a package from a very generous member of a woodworking forum on which I'm posting these updates. In the parcel were these two bits of bog oak (home-made plane for scale!)
All being well, these pieces will become the handle and front knob of the plane. I've never tried making anything even remotely like a plane handle before, so I thought I'd make sure I stood the best chance of having two goes at it by cutting the bog oak piece in half like this...

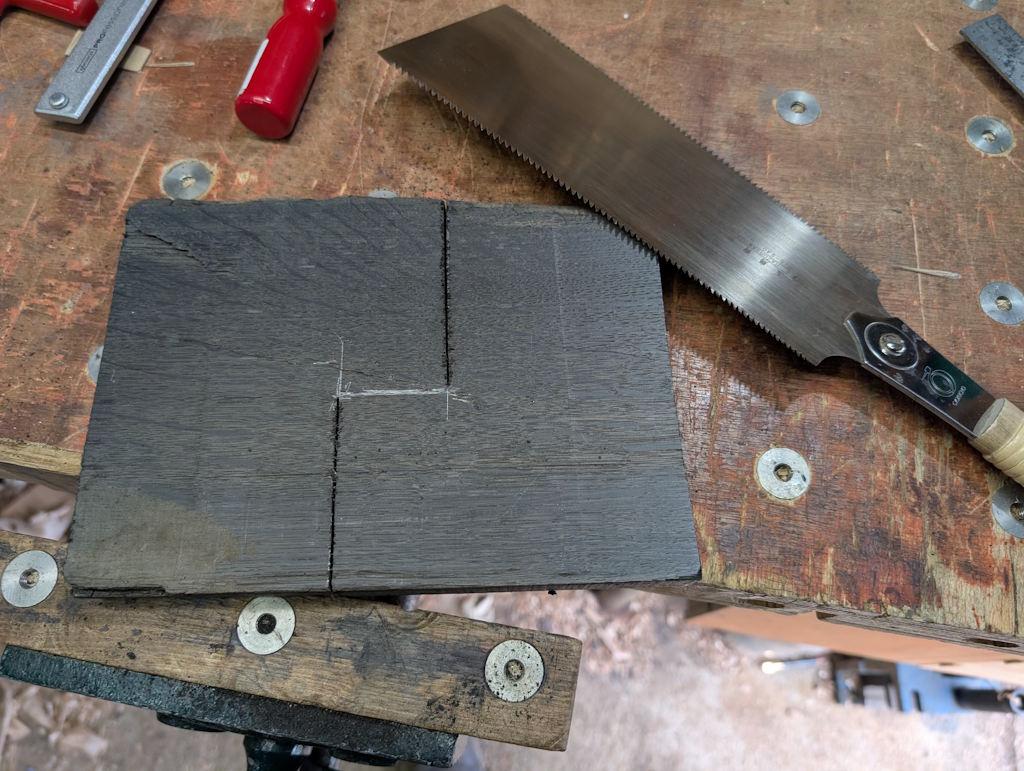

... and like this:

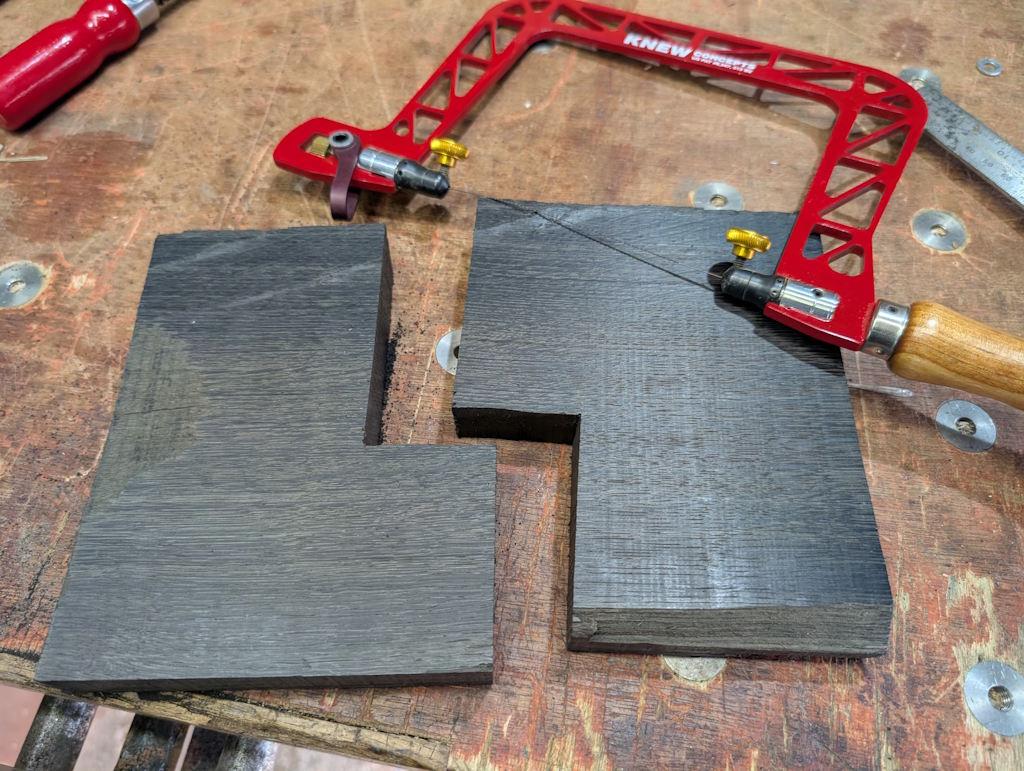

A coping saw would have been much better than a fret saw for the job, but my coping saw needs a new blade (and it's not a very good coping saw anyway, being a cheap modern one from a DIY store).
It will probably surprise no-one that I'd 3D-printed a couple of things:

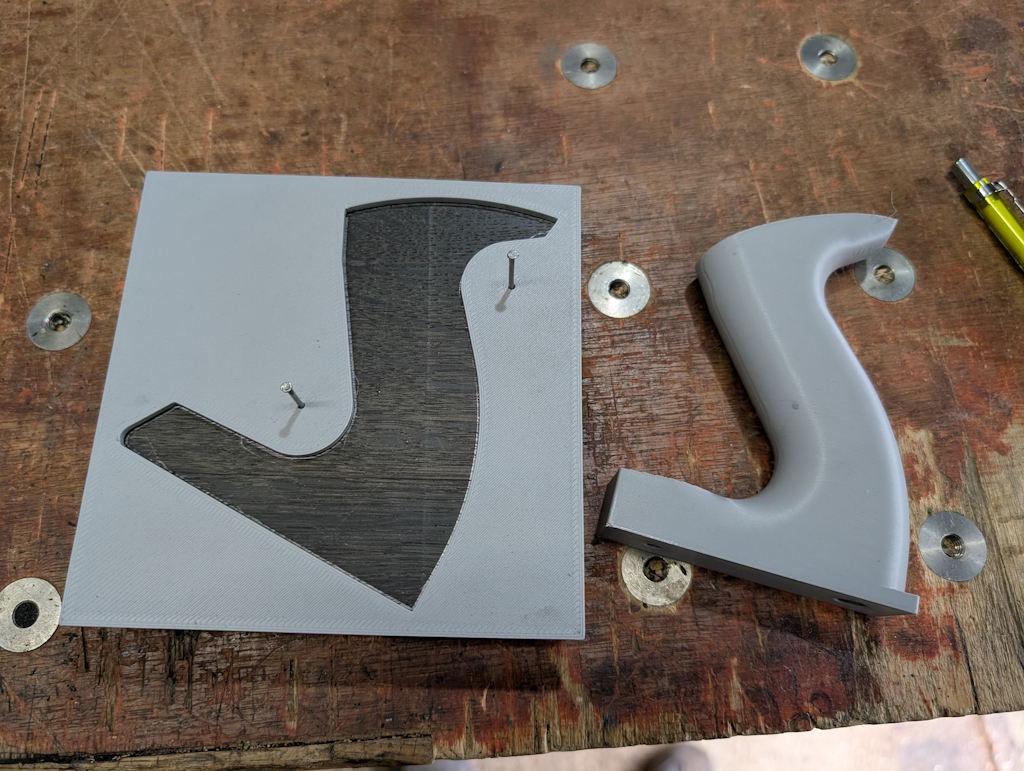

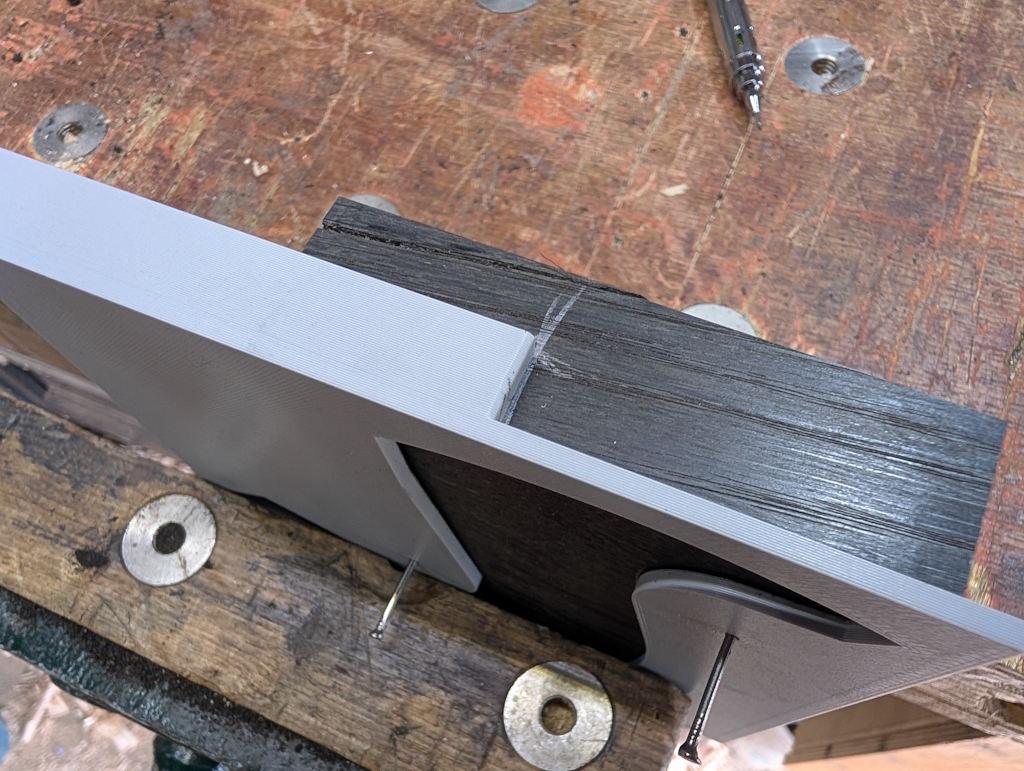

On the right is a test handle of approximately the shape I'm aiming for. I printed that so that I could hold it in my hand and see how it felt. On the left is a template for marking the shape onto the bog oak piece (with a couple of panel pins holding it in place and also marking the centres for the inside curves). The template also has a dog-leg on the top that's used to mark the location of a through hole for a screw:

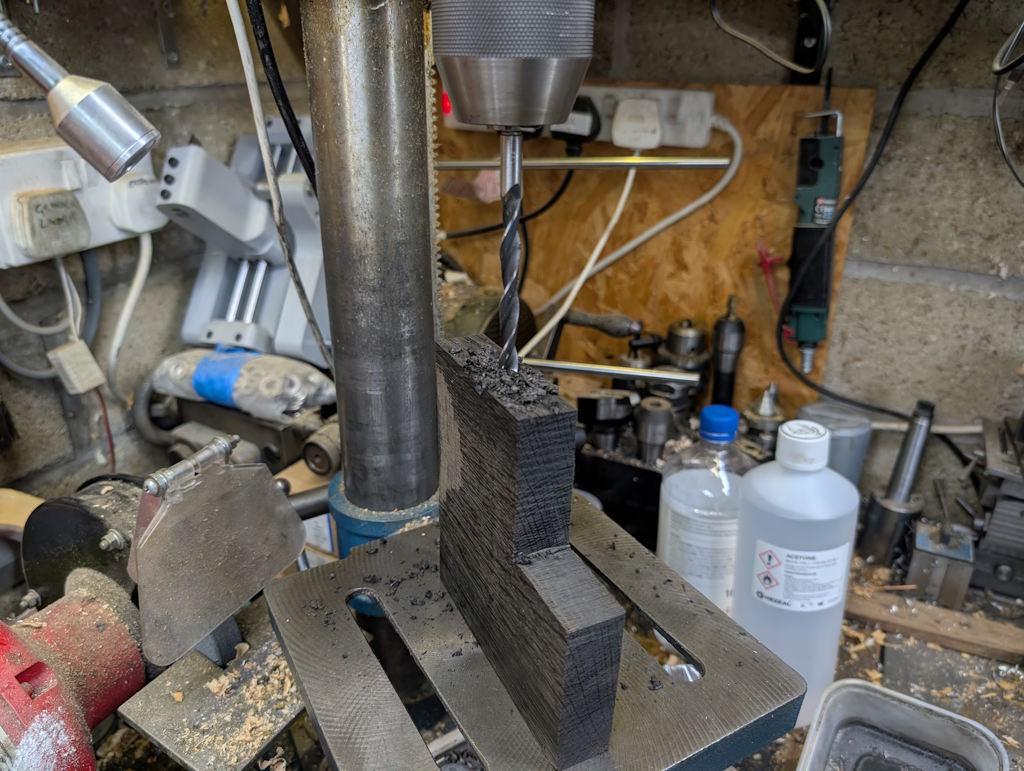

That through hole got drilled on the pillar drill, starting with an 8 mm spur bit...

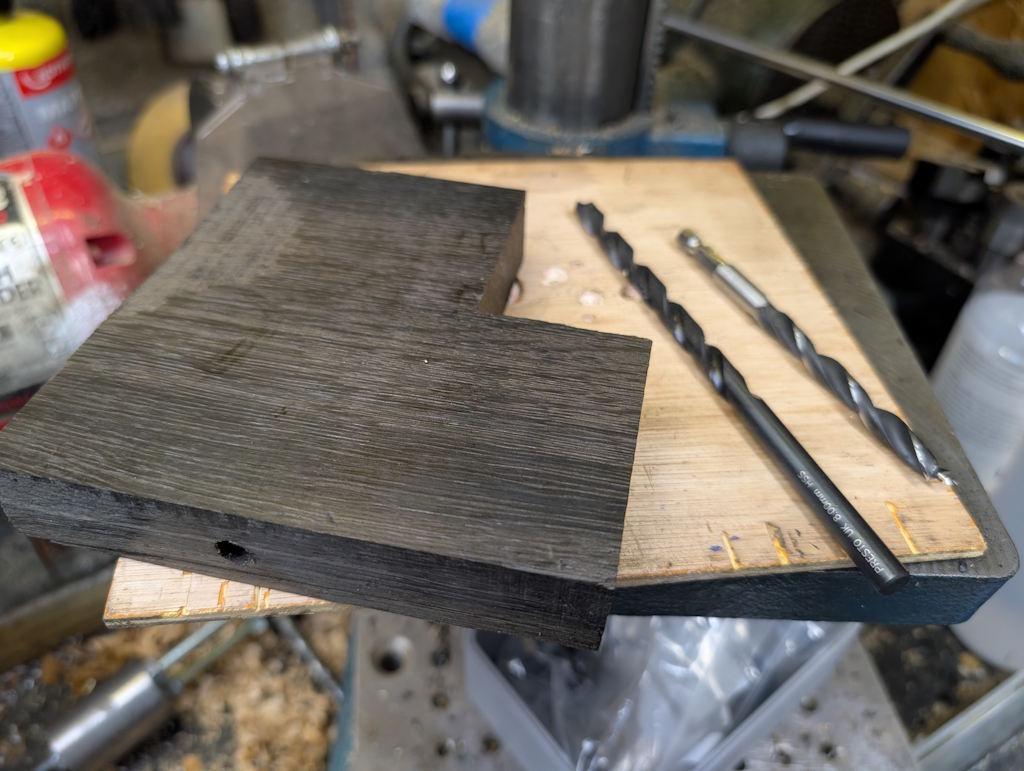

... and finishing with a long-series metalworking bit:

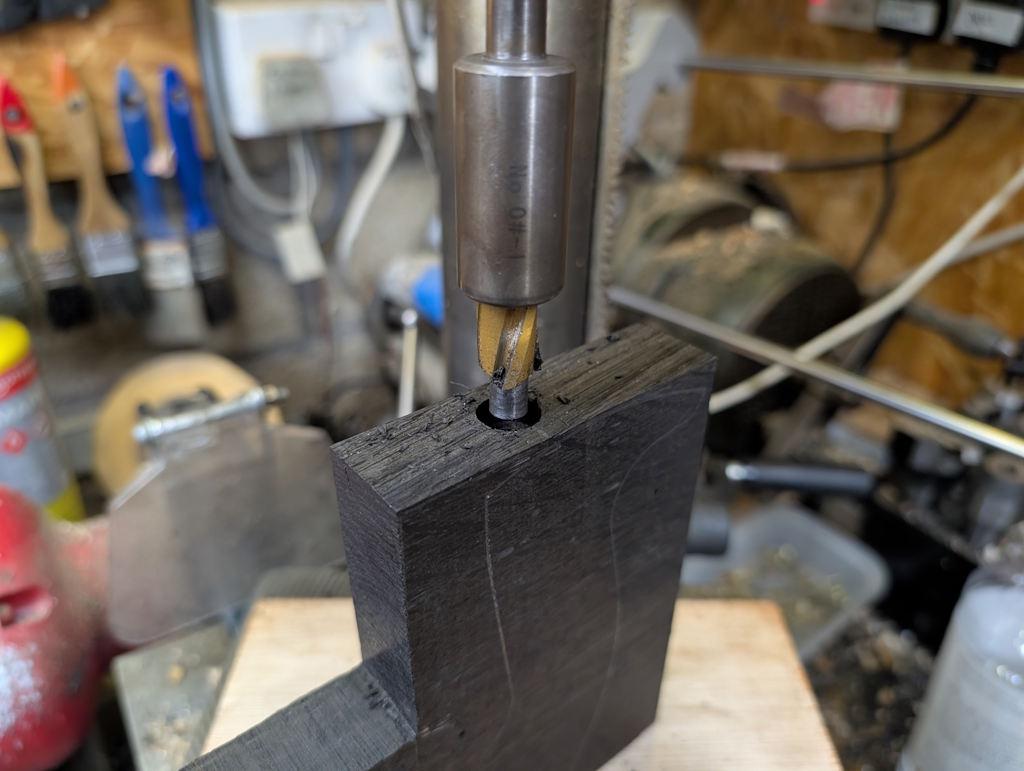

It came out of the bottom very slightly off-centre, but given the depth of the hole I was quite happy with it. The top got opened up with a counterbore (which may have to be deepened later but it's easier to at least get it started while the block has some flat edges):

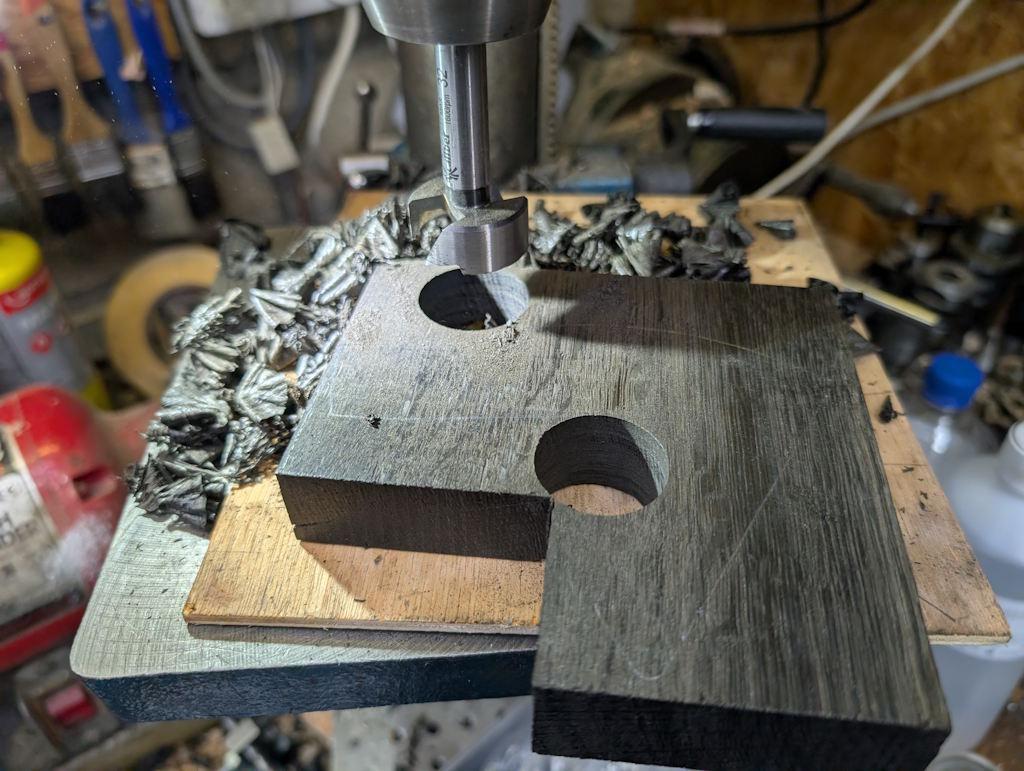

Two Forstner bits (30 mm and 32 mm) were used for the inside curves:

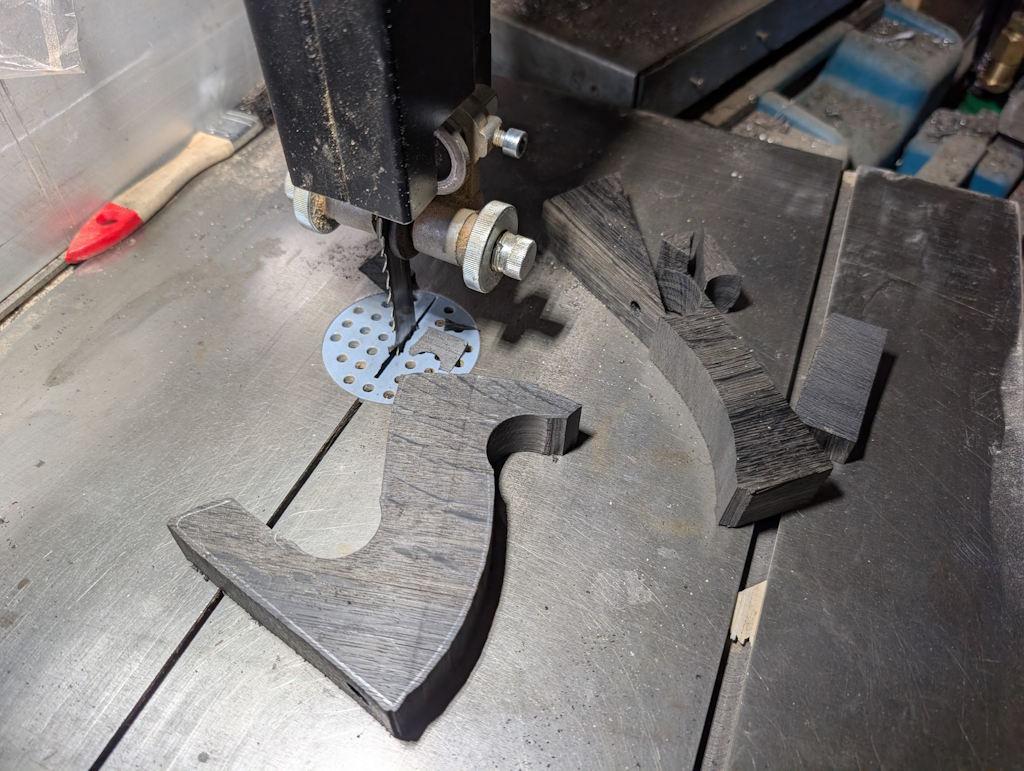

The bandsaw got rid of the bulk of the rest of the waste:

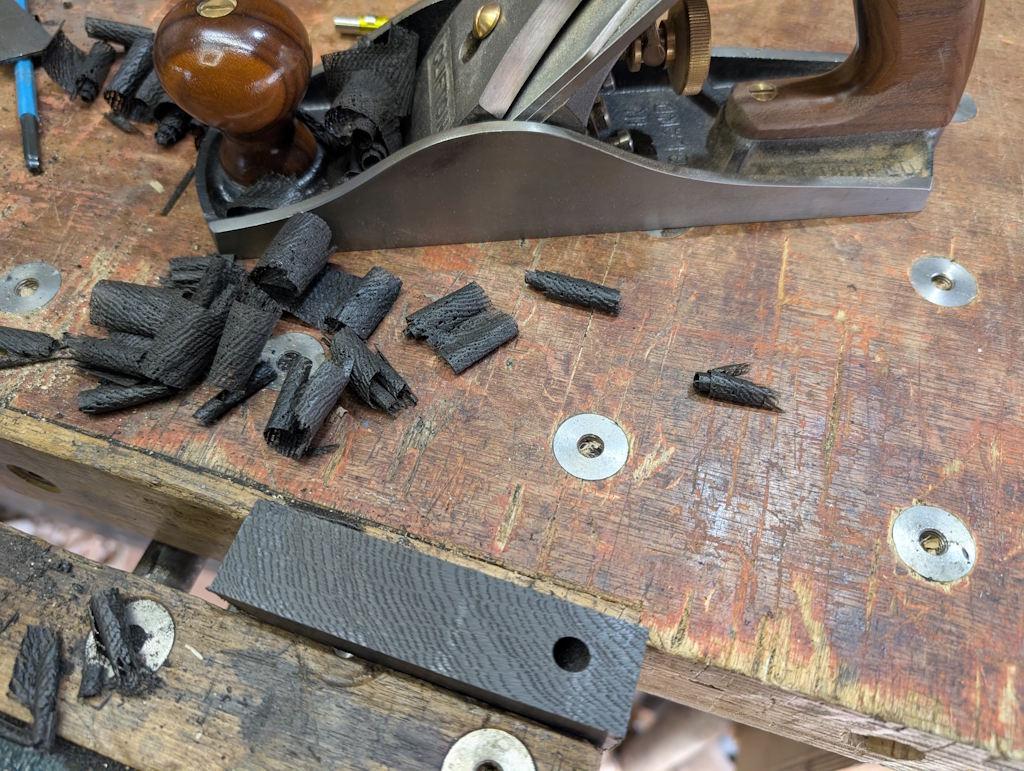

The base of the handle got planed flat (you can see the slight offset in the drilled hole here):
Incidentally, I haven't actually figured out how the handle is going to be secured in place. It'll go into a mortice in the plane body and be glued and there will be a screw of some form (probably an M8 low-head machine screw) going down through the handle. However it doesn't really have anything to "bite" into in the plane body and if I just drill a hole (e.g. for a threaded insert) into the plane body, the hole (or the threaded insert) is very likely to pop out the back of the plane.
I've got a few ideas for how to deal with that, but I think it'll be easiest to worry about it when I get there.

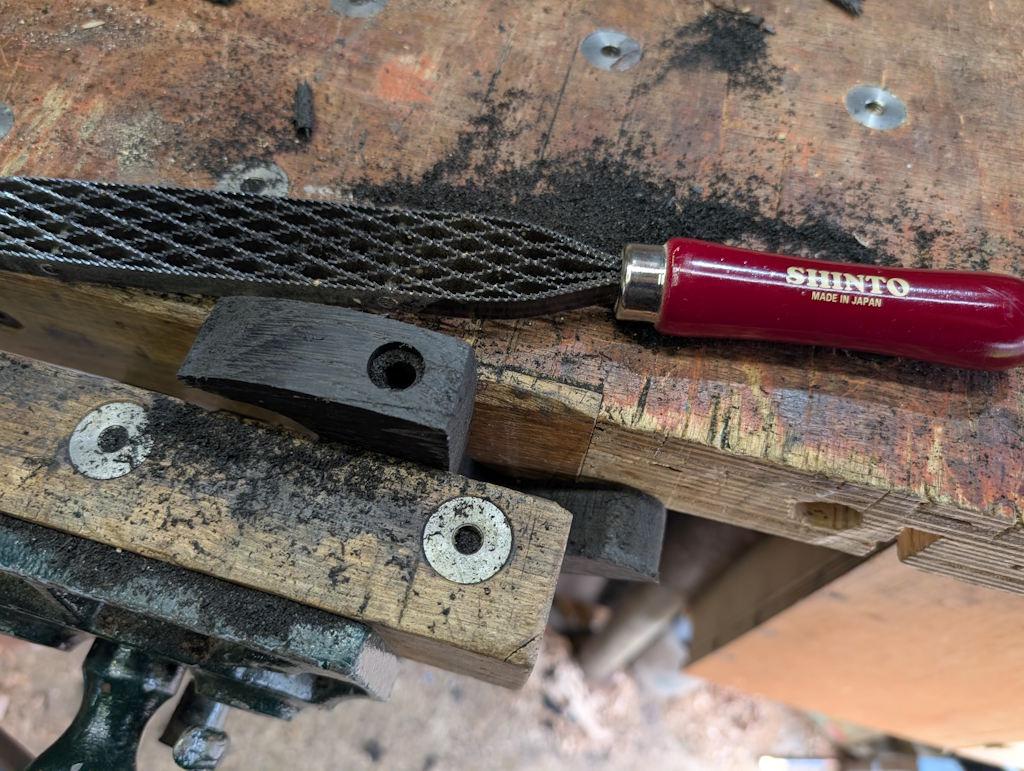

Next up, I used a Shinto rasp to bring the overall shape down to the pencil line (while keeping the edge square for now):

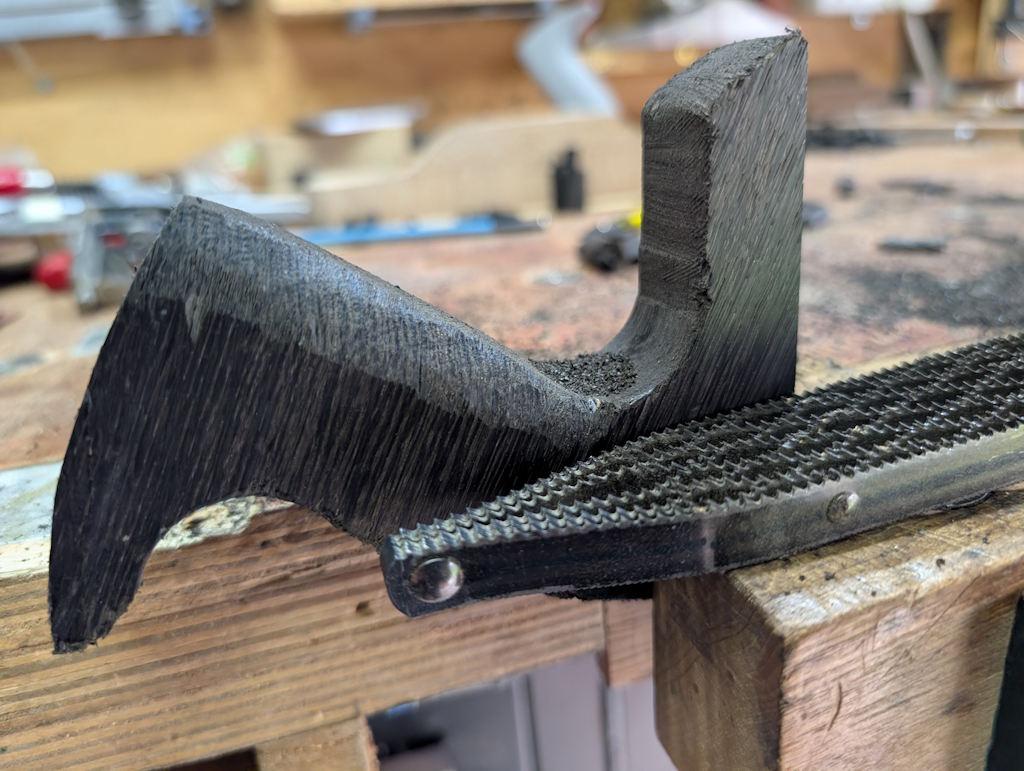

The rasp then did most of the rounding over:

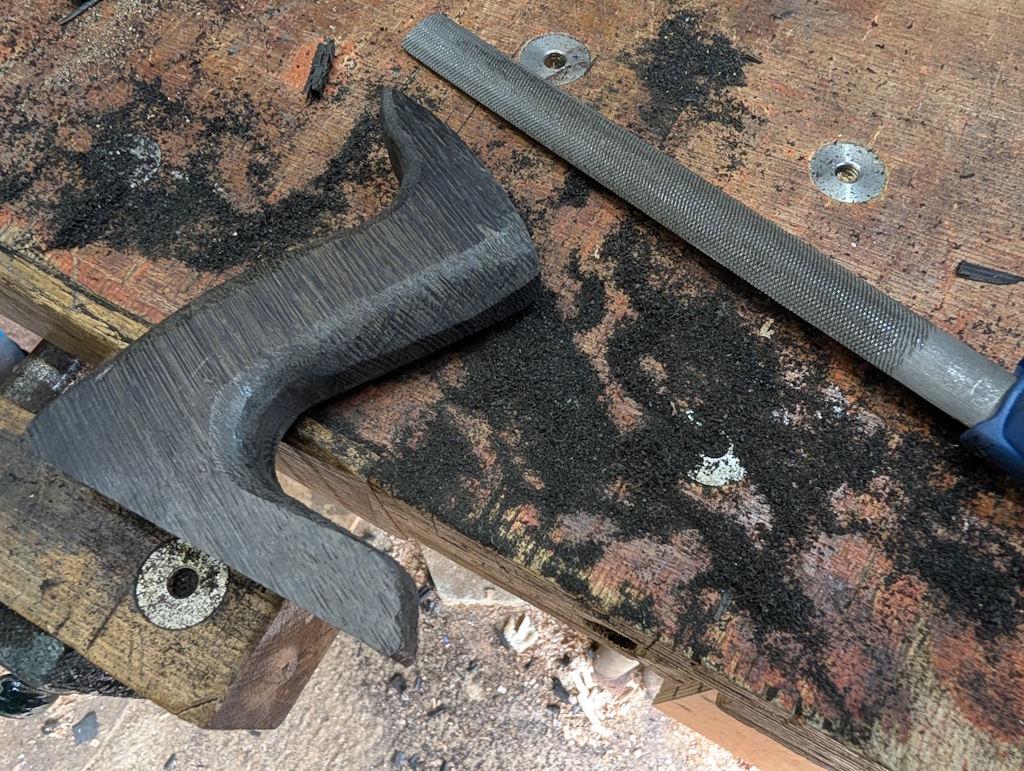

I then switched to a half-round file as it could get into the inside curves and round them over:

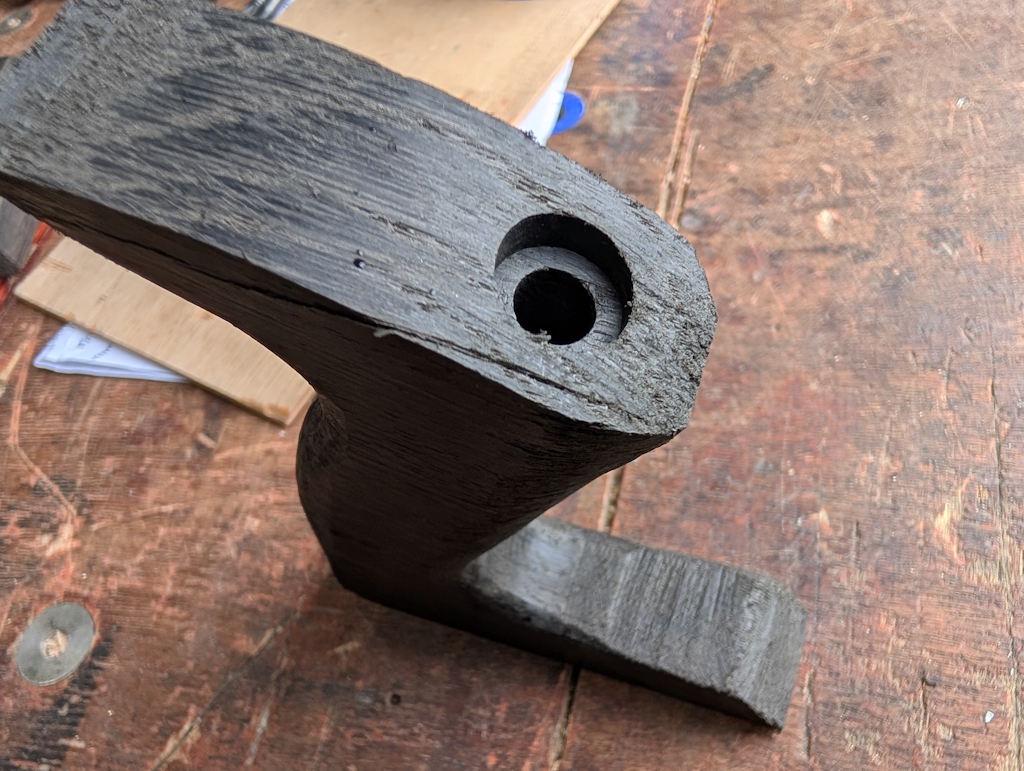

There was a crack that I hadn't managed to completely cut off when chopping up the bog oak piece:

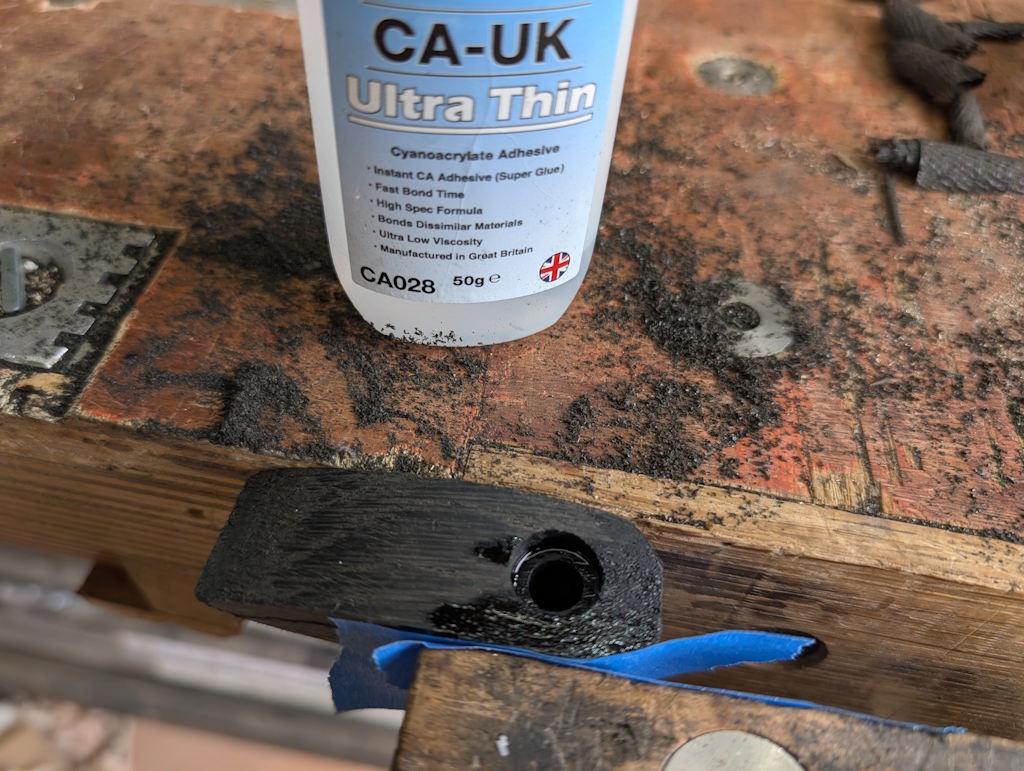

Hopefully some thin superglue will sort that out:

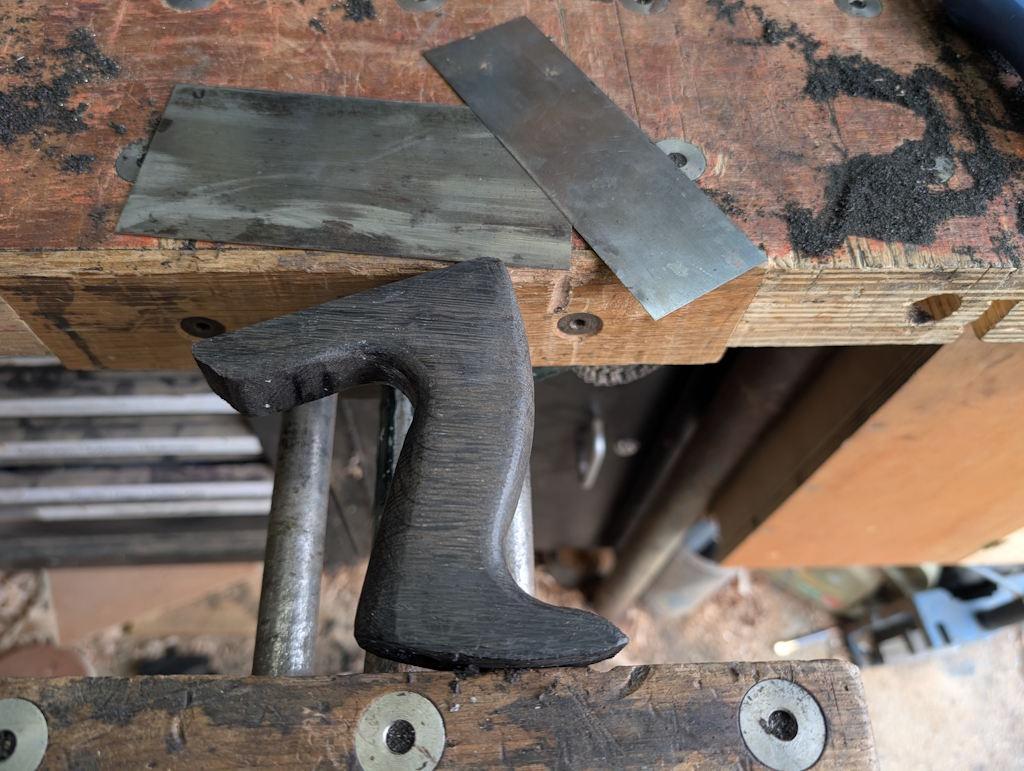

Next up was lots of card scraping to refine the shape and clean up the round-overs a bit:
I haven't finished refining and smoothing by any means, but I think it's close enough now (it feels comfortable in the hand) to start working on the mortice in the plane body. That's something I'm feeling a bit daunted by (as there's a lot of work that's gone into the plane body and I don't want to mess it up) so I decided to leave that until tomorrow.
