Block Plane for Travel Tool Chest Build Process

Return to main project page

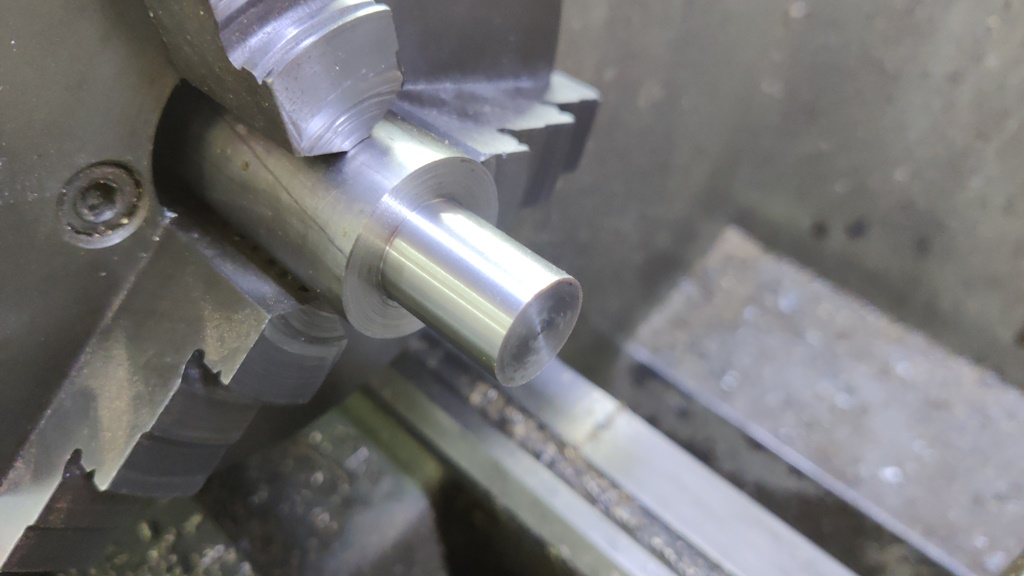

The next job to work on was the cam that will nudge the blade from side-to-side to provide a bit of lateral adjustment. I started with a bit of 303 stainless steel and turned a section down to 18 mm:

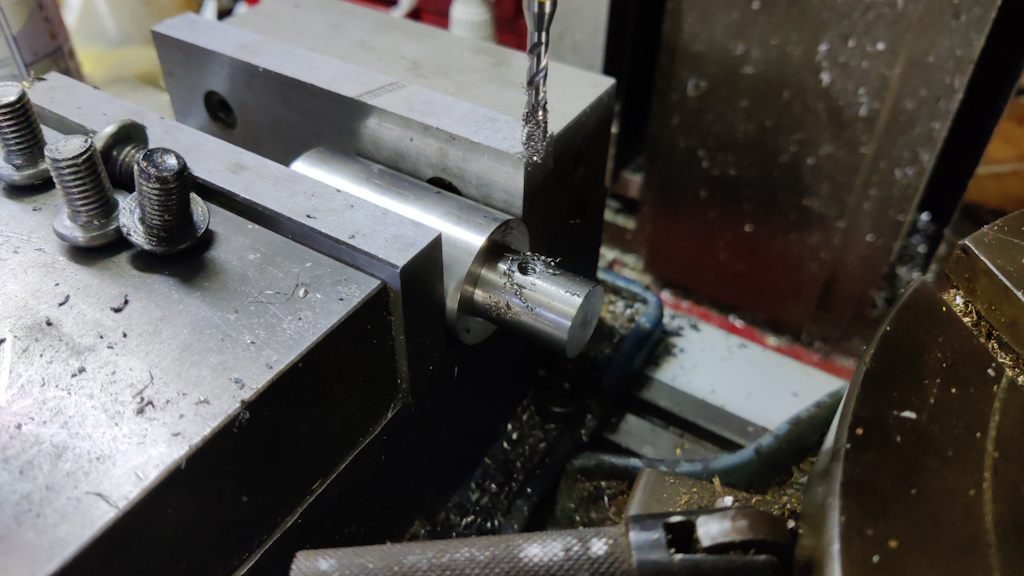

I then mounted the bar in the milling vice and cross-drilled and tapped the hole M5:

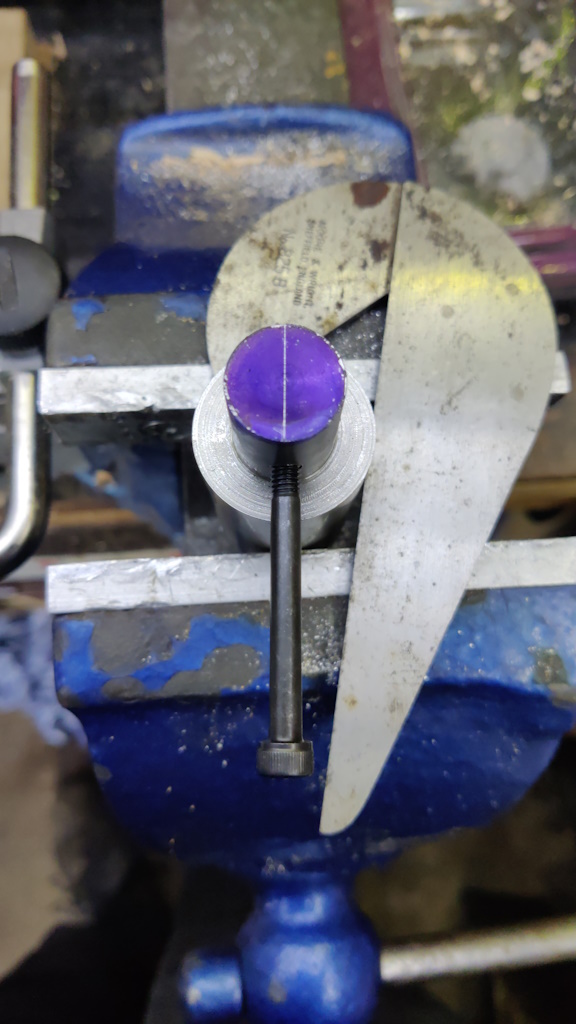

I fitted a cap screw into the tapped hole and used it to help align a centre-finder and scribe a line across the end, parallel with the threaded hole:

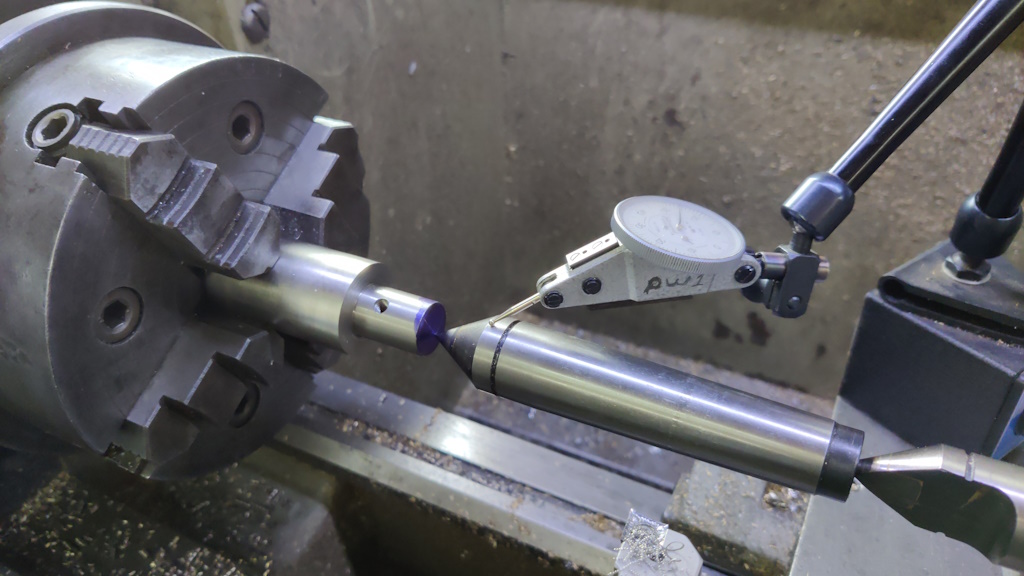

After marking a centre punch point along that line, I mounted the bar in the four-jaw chuck in the lathe and adjusted it until the centre punch point was on the lathe axis:

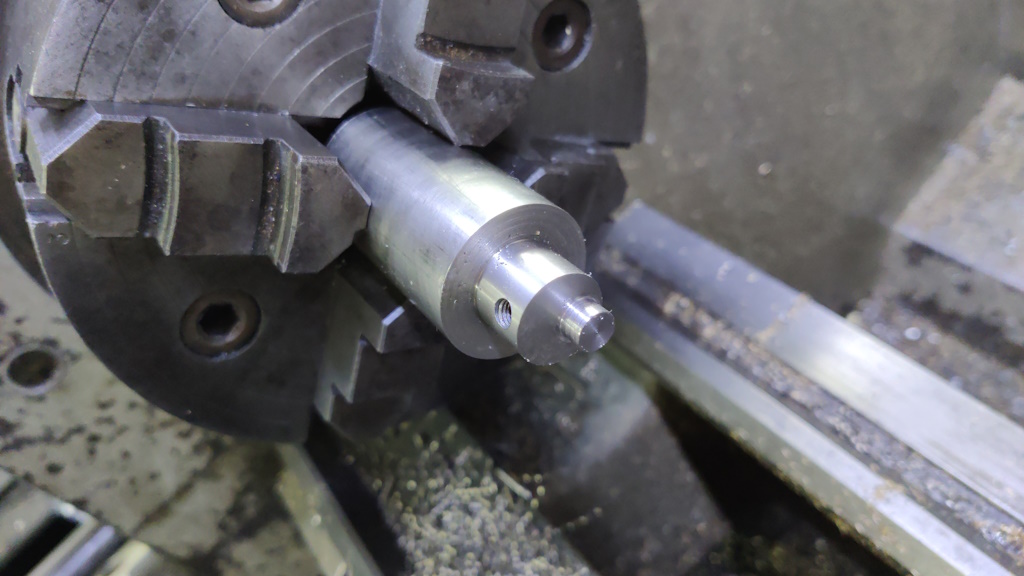

I could then turn an 8 mm diameter cam on the end of the bar:

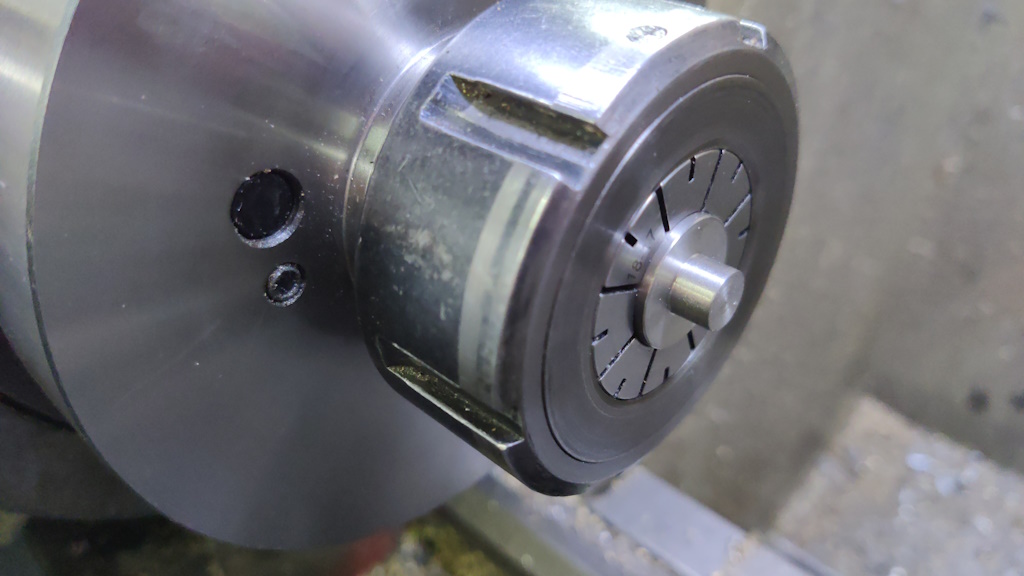

After sawing the bar end off in the bandsaw, I mounted it in a collet chuck and turned the reverse end down:

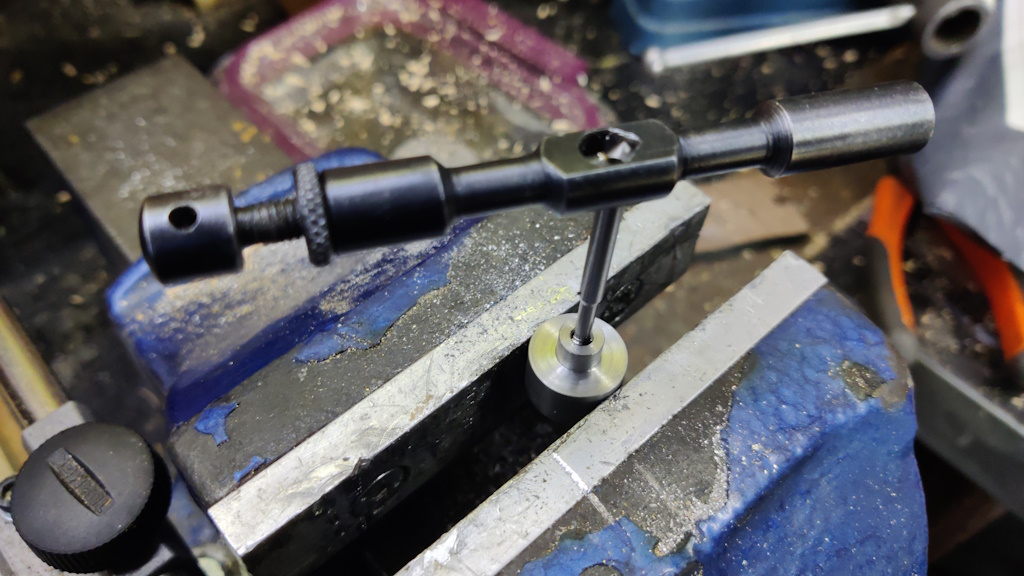

That end also got a 3.3 mm hole drilled, drilling until I reached the M5 cross-hole. The hole then got tapped M4:

That hole will be used for a grub screw, which will lock a piece of stainless steel M5 threaded rod into the cross-drilled hole.

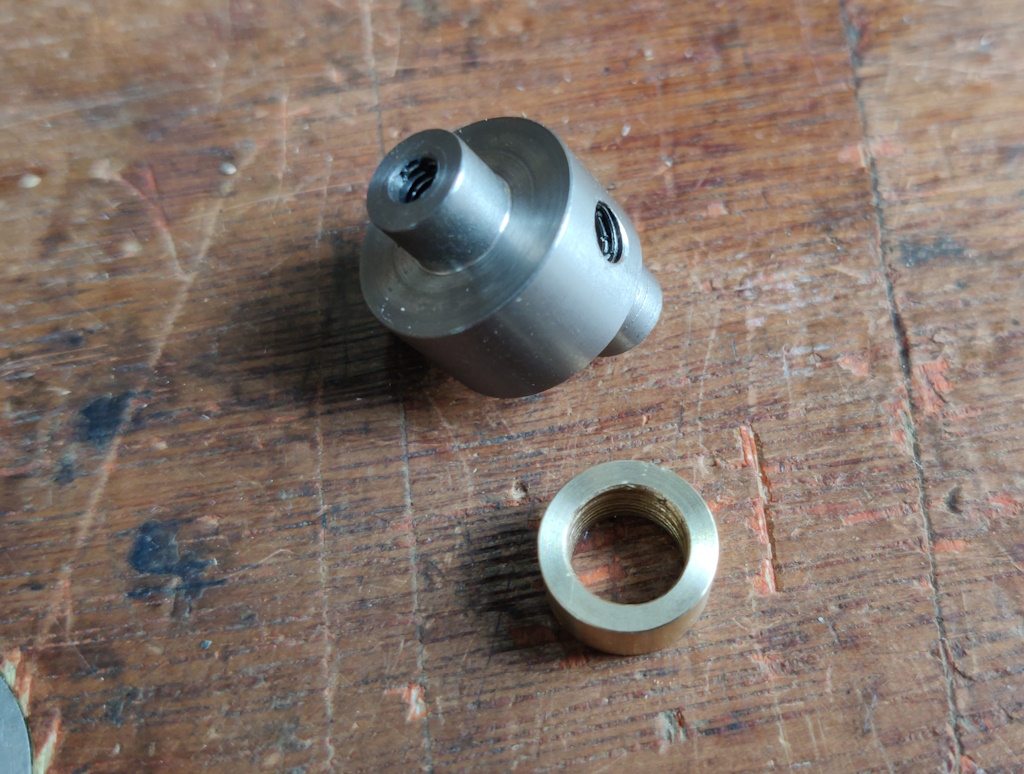

Finally, I turned a simple brass bush for the cam to rotate in (it should give a smoother action than trying to rotate the cam in a wooden hole).

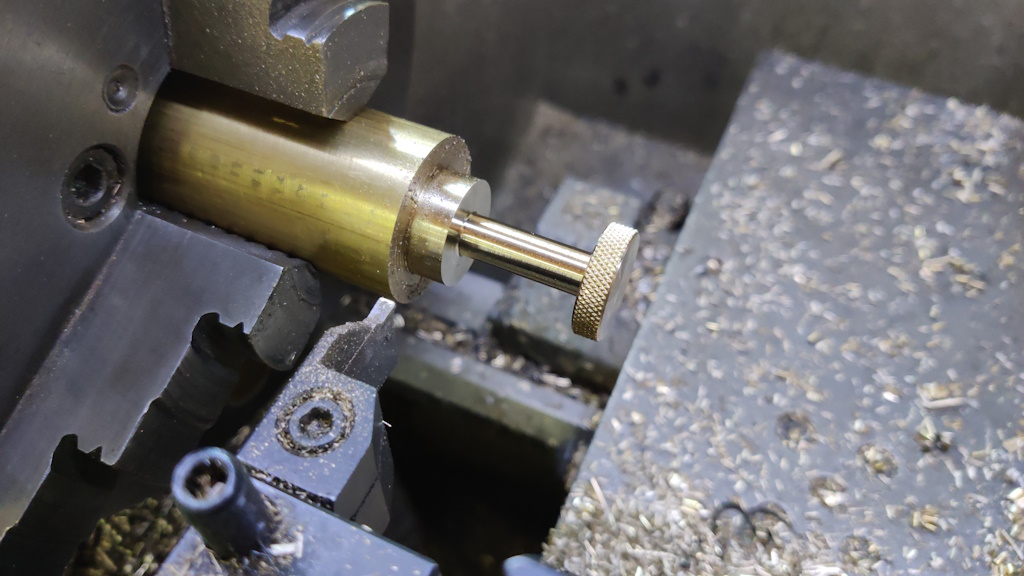

Next up is the adjuster, which will be used to move the blade in and out and will also form the "handle" that rotates the cam. I started with a bit of brass bar in the lathe, knurled it at the end and then shaped it:

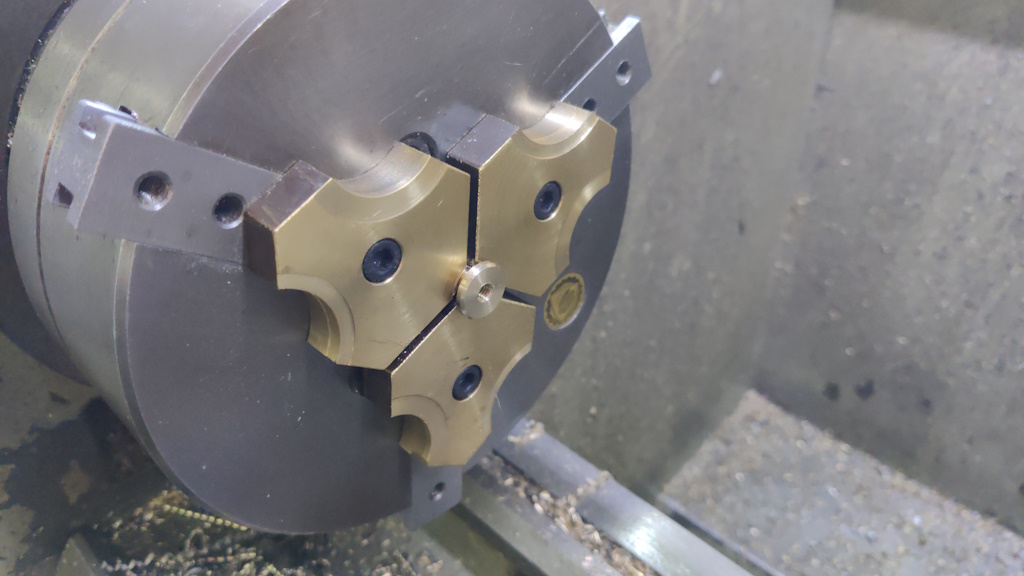

To shape the other end, I used my home-made soft-jaws to hold the adjuster. I could then shape the end and drill and tap a blind M5 hole in the end:

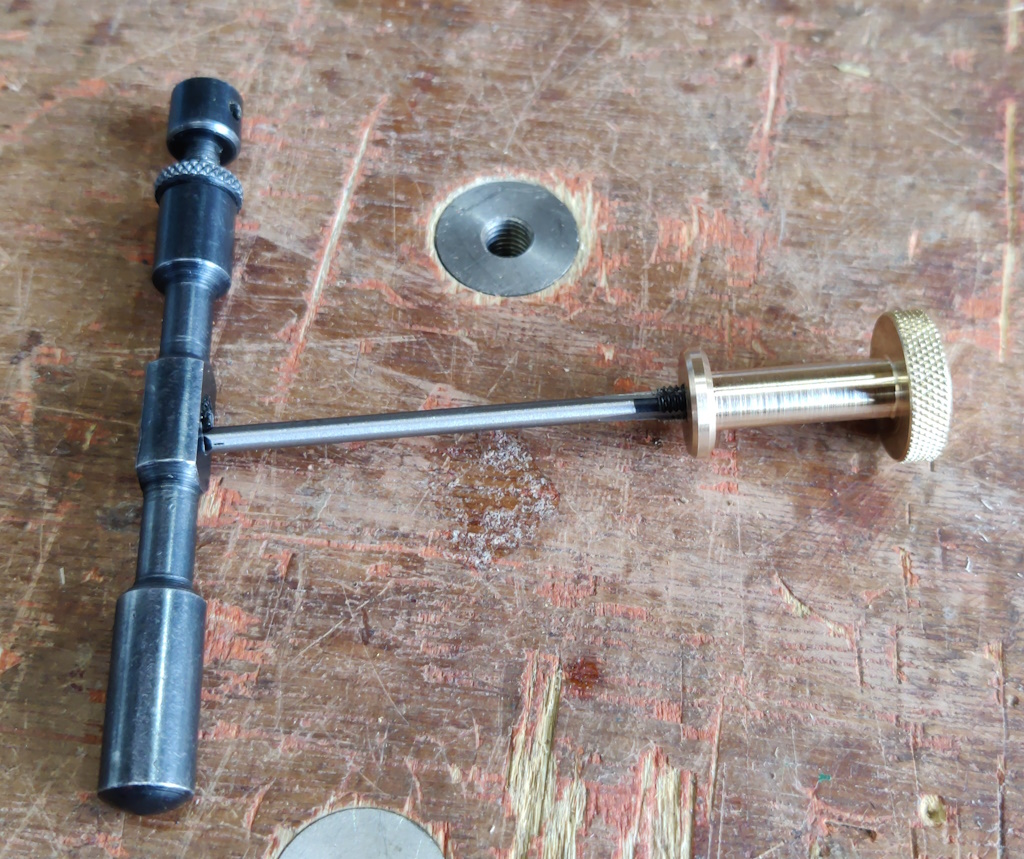

The tapped hole is deep: too deep for most of my M5 taps. However, I have a long-series M5 tap, so I extended the threads deeper using that by hand:

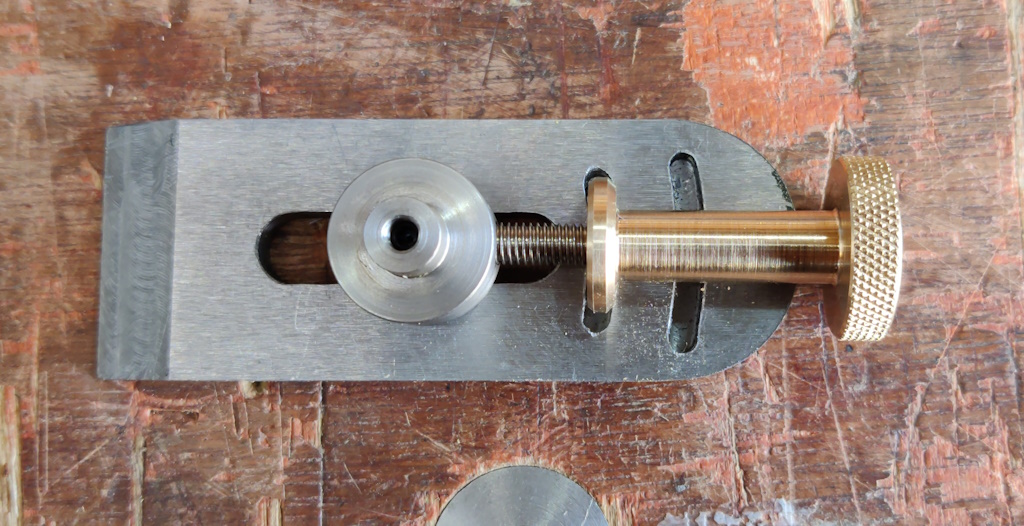

This photo shows how the adjuster components fit into the blade slots:
