Wood Lathe Build Process

Page 23 of 39

4/3/2024

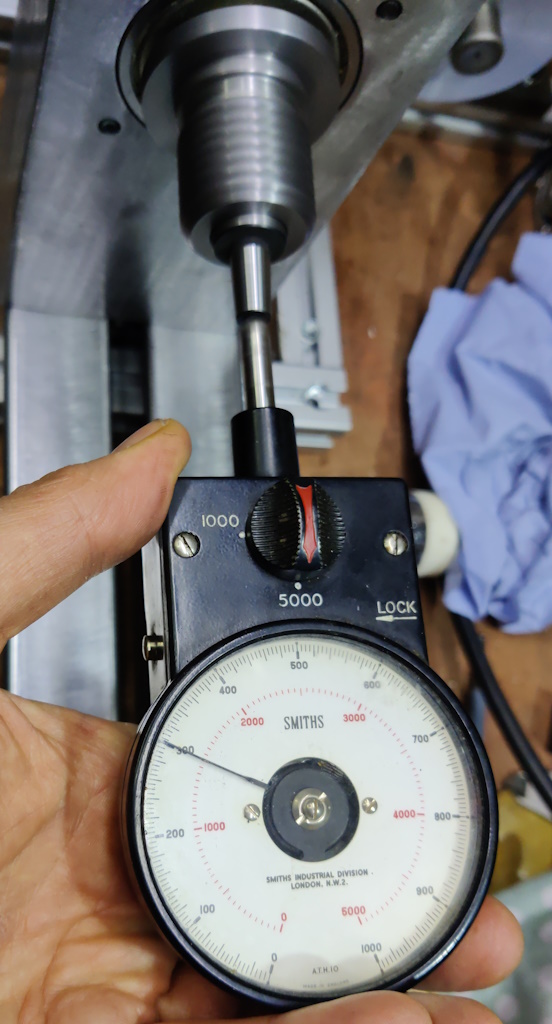

I didn't have much free time this evening (and most of what I did have was spent clearing up aluminium swarf), but I did manage to rummage out my old speed gauge and used it (along with the centre pip in an MT2 drill chuck arbor) to find out what the spindle speed was with the variable speed drive set to 50 Hz:

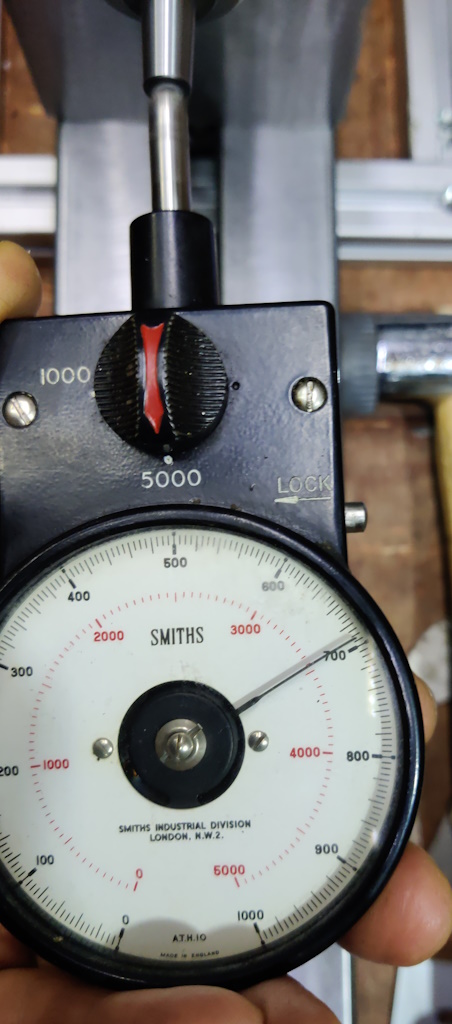

Looks like 1500 rpm to me. I also decided to live dangerously and wind the drive frequency up to 120 Hz. Nothing sounded odd (which was nice!) and the speed read-out shows 3450 rpm:

That's not far off linear given the resolution of the gauge. I'm sure it'll slow down a bit when under load (i.e. doing some actual turning) and I'm sure the slip will be greater at the higher frequency, but it does suggest that it might be usable over a decent speed range.

The drive has a nice feature where you can programme in the RPM you get at 50 Hz and then set the display up to show how fast the lathe is running at any frequency. I doubt it's doing anything very intelligent to account for loading, but it might still be a handy guide when I'm aiming for an approximate speed.
